Product Summary

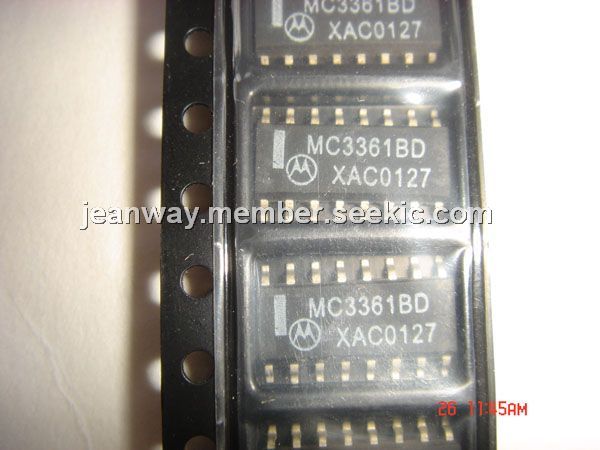

The MC3361BD is a low power narrowband FM IF. The MC3361BD includes an Oscillator, Mixer, Limiting Amplifier, Quadrature Discriminator, Active Filter, Squelch, Scan Control and Mute Switch. This device is designed for use in FM dual conversion communications equipment.

Parametrics

MC3361BD absolute maximum ratings: (1)Power Supply Voltage, pin 4, VCC(max): 10 Vdc; (2)Operating Supply Voltage Range, pin 4, VCC: 2.0 to 8.0 Vdc; (3)Detector Input Voltage, pin 8: 1.0 Vpp; (4)Input Voltage (VCC≥4.0 V), pin 16, V16: 1.0 Vrms; (5)Mute Function, pin 14, V14: –0.5 to 5.0 Vpk; (6)Junction Temperature, TJ: 150℃; (7)Operating Ambient Temperature Range, TA: –30 to 70℃; (8)Storage Temperature Range, Tstg: –65 to 150℃.

Features

MC3361BD features: (1)Operates from 2.0 to 8.0 V Supply; (2)Low Drain Current 3.9 mA Typical @ VCC = 4.0 Vdc; (3)Excellent Sensitivity: Input Limiting Voltage -3.0 dB = 2.6mV Typical; (4)Low Number of External Parts Required; (5)Operating Frequency Up to 60 MHz.

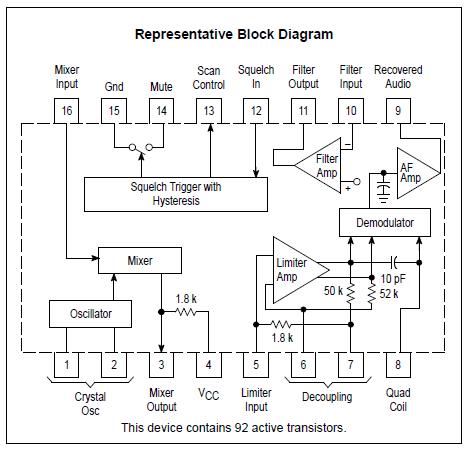

Diagrams
