Product Summary

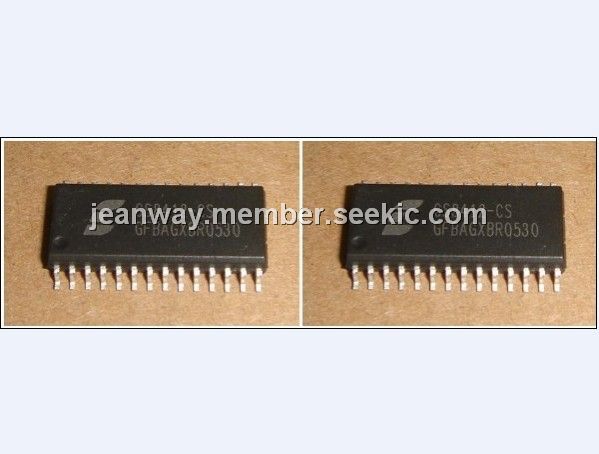

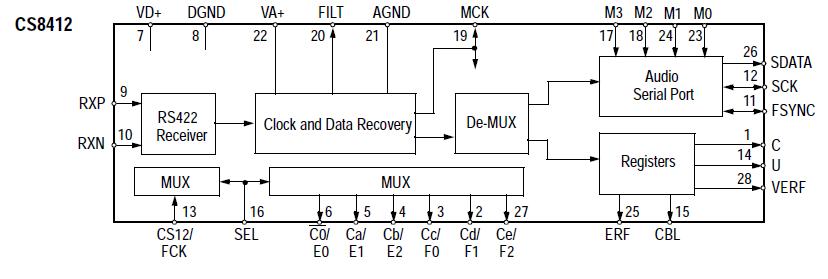

The CS8412-CS is a monolithic CMOS device which receives and decodes audio data according to the AES/EBU, IEC958, S/PDIF, & EIAJ CP-340 interface standards. The CS8412-CS receives data from a transmission line, recover the clock and synchronization signals, and demultiplex the audio and digital data. Differential or single ended inputs can be decoded. The CS8412-CS has a configurable internal buffer memory, read via a parallel port, which may be used to buffer channel status, auxiliary data, and/or user data.
Parametrics
CS8412-CS absolute maximum ratings: (1)Power Supply Voltage VD+, VA+: 6.0 V; (2)Input Current, Any Pin Except Supply: ± 10 mA; (3)Input Voltage, Any Pin except RXP, RXN: -0.3 VD+ to + 0.3 V; (4)Input Voltage, RXP and RXN: -12 to 12 V; (5)Ambient Operating Temperature (power applied): -55 to 125 ℃; (6)Storage Temperature: -65 to 150 ℃.
Features
CS8412-CS features: (1)lMonolithic CMOS Receiver; (2)Low-Jitter, On-Chip Clock Recovery 256x Fs Output Clock Provided; (3)Supports: AES/EBU, IEC958, S/PDIF, & EIAJ CP-340 Professional and Consumer Formats; (4)Extensive Error Reporting-Repeat Last Sample on Error Option; (5)On-Chip RS422 Line Receiver; (6)Configurable Buffer Memory (CS8411).
