Product Summary

The Intel FWIXP425BB Product Line of Network Processors is compliant with the ARM Version 5TE instruction-set architecture (ISA). The Intel FWIXP425BB product line is designed with Intel 0.18-μ production semiconductor process technology. This process technology — along with the compactness of the Intel XScale core, the ability to simultaneously process up to three integrated network processing engines (NPEs), and numerous dedicated-function peripheral interfaces — enables the FWIXP425BB product line to operate over a wide range of low-cost networking applications, with industry-leading performance.

Parametrics

Absolute maximum ratings: (1)Ambient Air Temperature (Extended): -40℃ to 85℃; (2)Ambient Air Temperature (Commercial): 0℃ to 70℃; (3)Supply Voltage Core: -0.3V to 2.1V; (4)Supply Voltage I/O: -0.3V to 3.6V; (5)Supply Voltage Oscillator (VCCOSC): -0.3V to 2.1V; (6)Supply Voltage Oscillator (VCCOSCP): -0.3V to 3.6V; (7)Supply Voltage PLL (VCCPLL1): -0.3V to 2.1V; (8)Supply Voltage PLL (VCCPLL2): -0.3V to 2.1V; (9)Voltage On Any I/O Ball: -0.3V to 3.6V; (10)Storage Temperature: -55℃ to 125℃.

Features

Features: (1)Intel XScale Core — Up to 533 MHz; (2)PCI Interface; (3)USB v1.1 Device Controller; (4)SDRAM Interface; (5)High-Speed UART; (6)Console UART; (7)Internal Bus Performance Monitoring Unit; (8)16 GPIOs; (9)Four Internal Timers; (10)Packaging: 492-pin PBGA; (11)Commercial/Extended Temperature; (12)Encryption/Authentication (AES,DES,3DES,SHA-1,MD5); (13)Two High-Speed, Serial Interfaces; (14)Three Network Processor Engines; (15)Up to two MII Interfaces; (16)One UTOPIA-2 Interface; (17)Multi-Channel HDLC.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

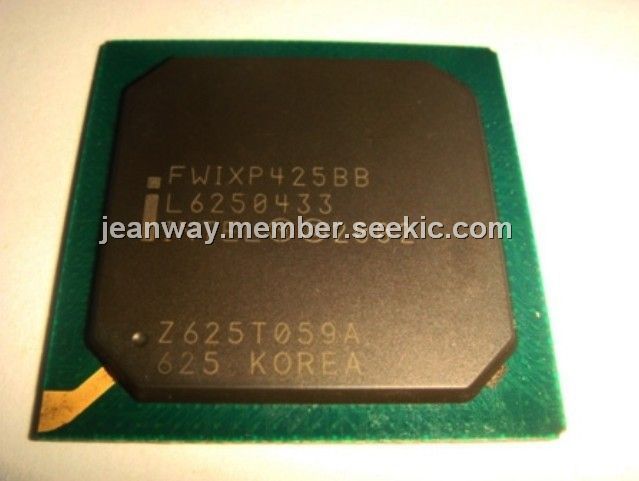

FWIXP425BB
FWIXP425BB


IC NETWRK PROCESSR 266MHZ 492BGA

Data Sheet

0-1: $10.82
1-10: $10.01
10-100: $8.52
100-250: $7.84
250-500: $7.75
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FWIXP420BB
FWIXP420BB


IC NETWRK PROCESSR 266MHZ 492BGA

Data Sheet

Negotiable
FWIXP420BC
FWIXP420BC


IC NETWRK PROCESSR 400MHZ 492BGA

Data Sheet

Negotiable
FWIXP420BD
FWIXP420BD


IC NETWRK PROCESSR 533MHZ 492BGA

Data Sheet

Negotiable
FWIXP421BB
FWIXP421BB


IC NETWRK PROCESSR 266MHZ 492BGA

Data Sheet

0-1: $14.14
1-10: $13.08
10-100: $11.14
100-250: $10.25
250-500: $10.12
FWIXP422BB
FWIXP422BB


IC NETWRK PROCESSR 266MHZ 492BGA

Data Sheet

Negotiable
FWIXP425BB
FWIXP425BB


IC NETWRK PROCESSR 266MHZ 492BGA

Data Sheet

0-1: $10.82
1-10: $10.01
10-100: $8.52
100-250: $7.84
250-500: $7.75
