Product Summary

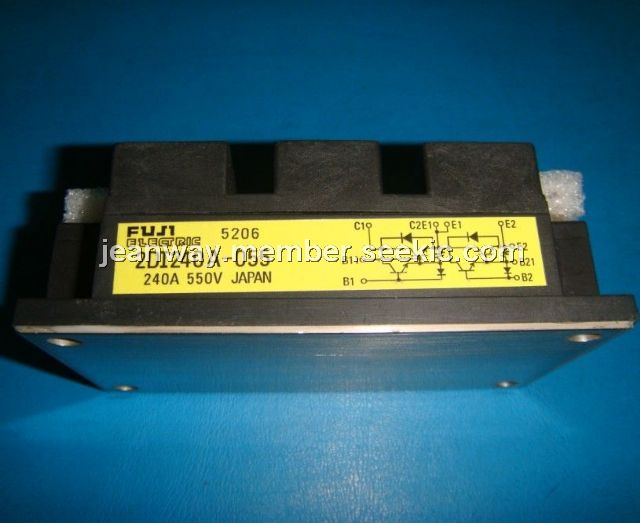

The 2DI240A-055 is a 600 Volts class power transistor module.

Parametrics

Absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO(sus): 550 V; (4)Ic: 240 Amps; (5)Pc: 1000 Watts; (6)hFE: 70 min; (7)Ic: 240 Amps; (8)VCE: 5 Volts; (9)switching time (max.) ton: 2.0 μsec.

Features

Features: (1)power transistors and free wheel diodes are built into package; (2)all terminals are insulated from mounting plate; (3)suited for motor control application with 220 to 240 Volts inputs; (4)all terminals are screw-clamp type.

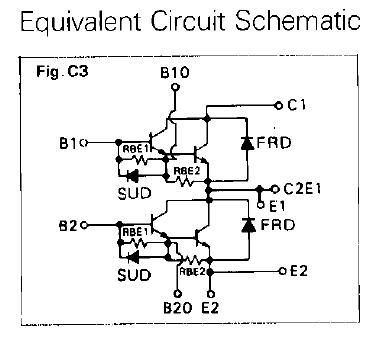

Diagrams
