Product Summary

The LMK212BJ105MG-T is high value multilayer ceramic capacitors. It has a wide application in general digital circuit, power supply bypass capacitors, such as liquid crystal modules, liquid crystal drive voltage lines, as well as LSI, IC, converters(both for input and output). What is more, this capacitors also used as smoothing capacitors, like DC-DC converters (both for input and output) and switching power supplies (secondary side).

Parametrics

Characteristics: (1)Manufacturer: Taiyo Yuden; (2)Part No: LMK212BJ105MG-T; (3)RoHS: Yes; (4)Voltage: 10 VDC; (5)Package/Case: 0805; (6)Family: M; (7)Tolerance: 20 %; (8)Construction: Flat; (9)Capacitance Value: 1 uF; (10)Packaging: Tape and Reel; (11)Lead Pitch For Radial: N/A; (12)Mounting: Surface Mount; (13)Operating Temperature: -55 to 85℃; (14)Dimension: 2 x 1.25 x 1.25mm.

Features

Features: (1)The use of Nickel(Ni) as material for both the internal and external electrodes improves the solderability and heat resistance characteristics; (2)This almost completely eliminates migration and raises the level of reliability significantly; (3)Low equivalent series resistance(ESR) provides excellent noise absorption characteristics; (4)Compared to tantalum or aluminum electrolytic capacitors these ceramic capacitors offer a number of excellent features; (5)Higher permissible ripple current values; (6)Smaller case sizes relative to rated voltage; (7)Improved reliability due to higher insulation resistance and breakdown voltage.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

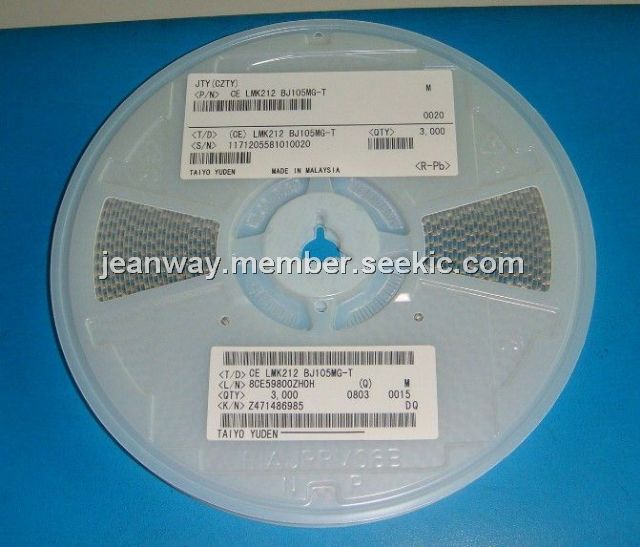

LMK212BJ105MG-T
LMK212BJ105MG-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 1uF 20%
Data Sheet
0-1: $0.22
1-10: $0.14
10-50: $0.07
50-100: $0.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LMK212B7105KG-T
LMK212B7105KG-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 1uF 10%
Data Sheet
0-1: $0.22
1-10: $0.14
10-50: $0.07
50-100: $0.04
LMK212B7105MG-T
LMK212B7105MG-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 1uF 20%
Data Sheet
0-1: $0.22
1-10: $0.14
10-50: $0.07
50-100: $0.04
LMK212B7106KG-TD
LMK212B7106KG-TD
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 10uF 10%
Data Sheet
0-1: $0.33
1-10: $0.26
10-50: $0.19
50-100: $0.12
LMK212B7225KD-T
LMK212B7225KD-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 2.2uF 10%
Data Sheet
0-1: $0.22
1-10: $0.16
10-50: $0.10
50-100: $0.05
LMK212B7335MG-T
LMK212B7335MG-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 3.3uF 20%
Data Sheet
0-1: $0.25
1-10: $0.20
10-50: $0.13
50-100: $0.08
LMK212B7475KG-T
LMK212B7475KG-T
Taiyo Yuden
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT CAP MLCC 0805 10V X7R 4.7uF 10%
Data Sheet
0-1: $0.21
1-10: $0.17
10-50: $0.11
50-100: $0.06
