Product Summary

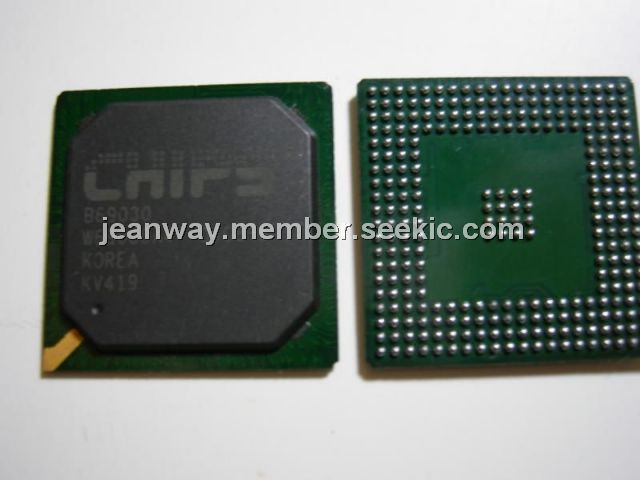

The B69030 is a dual HiQVideo accelerator with 4MB embedded memory.

Parametrics

B69030 absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to 5.0 V; (2)VI Input Voltage: -0.5 to 5.5 V; (3)TSTG Storage Temperature: -40 to 125 ℃.

Features

B69030 features: (1)Embedded SDRAM memory; (2)Dual Independent Display; (3)Single View Display Mode; (4)Dual Independent Display Mode; (5)HiQColorTM Technology implements TMED; (6)Graphics Acceleration; (7)NTSC / PAL TV-Out Support.

Diagrams

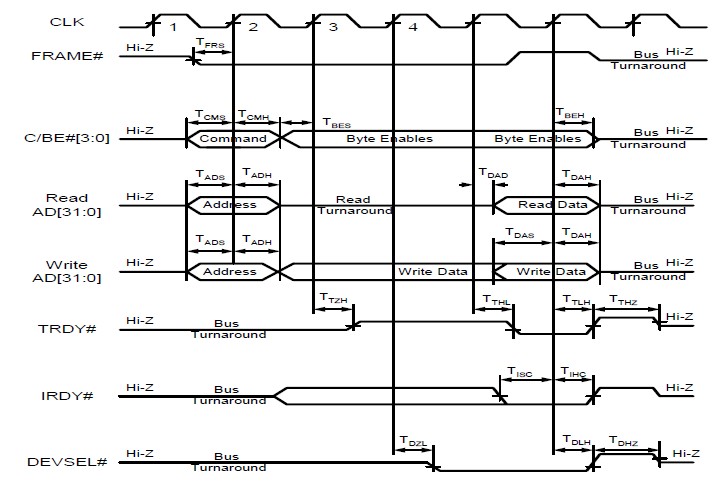

B69030 PCI Bus Frame Timing
