Product Summary

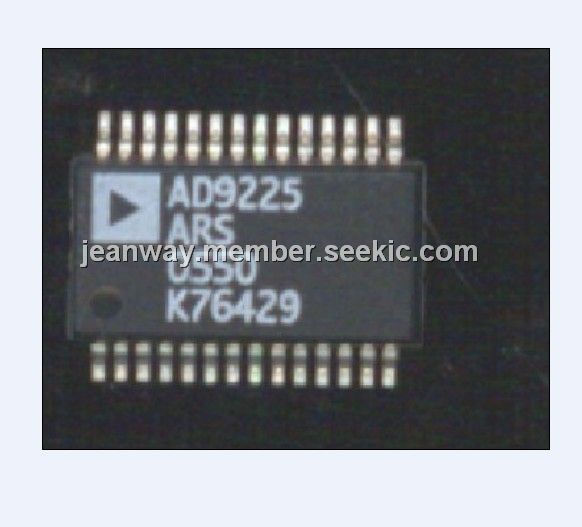

The AD9225ARS is a monolithic, single supply, 12-bit, 25 MSPS, analog-to-digital converter with an on-chip, high performance sample-and-hold amplifier and voltage reference. The AD9225ARS uses a multistage differential pipelined architecture with output error correction logic to provide 12-bit accuracy at 25 MSPS data rates, and guarantees no missing codes over the full operating temperature range. The AD9225ARS combines a low cost high speed CMOS process and a novel architecture to achieve the resolution and speed of existing bipolar implementations at a fraction of the power consumption and cost.

Parametrics

AD9225ARS absolute maximum ratings: (1)pin AVDD, AVSS: –0.3 to +6.5 V; (2)pin DRVDD, DRVSS: –0.3 to +6.5 V; (3)pin AVSS, DRVSS: –0.3 to +0.3 V; (4)pin AVDD, DRVDD: –6.5 to +6.5 V; (5)pin REFCOM, AVSS: –0.3 to +0.3 V; (6)pin CLK, AVSS :–0.3 to AVDD + 0.3 V; (7)pin Digital Outputs, DRVSS: –0.3 to DRVDD + 0.3 V; (8)pin VINA, VINB, AVSS: –0.3 to AVDD + 0.3 V; (9)pin VREF, AVSS: –0.3 to AVDD + 0.3 V; (10)pin SENSE, AVSS: –0.3 to AVDD + 0.3 V; (11)pin CAPB, CAPT, AVSS: –0.3 to AVDD + 0.3 V; (12)Junction Temperature: +150℃; (13)Storage Temperature: –65 to +150℃; (14)Lead Temperature (10 sec): +300℃.

Features

AD9225ARS features: (1)Monolithic 12-Bit, 25 MSPS A/D Converter; (2)Low Power Dissipation: 280 mW; (3)Single +5 V Supply; (4)No Missing Codes Guaranteed; (5)Differential Nonlinearity Error: 60.4 LSB; (6)Complete On-Chip Sample-and-Hold Amplifier and Voltage Reference; (7)Signal-to-Noise and Distortion Ratio: 71 dB; (8)Spurious-Free Dynamic Range: –85 dB; (9)Out-of-Range Indicator; (10)Straight Binary Output Data; (11)28-Lead SOIC; (12)28-Lead SSOP; (13)Compatible with 3 V Logic.

Diagrams

AD9225ARS functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9225ARS
AD9225ARS

IC ADC 12BIT 25MSPS 28-SSOP
Data Sheet
0-15: $16.24
AD9225ARSRL
AD9225ARSRL

IC ADC 12BIT 25MSPS 28-SSOP
Data Sheet
0-1500: $11.71
AD9225ARSZ
AD9225ARSZ

IC ADC 12BIT 25MSPS 28-SSOP
Data Sheet
0-1: $16.00
1-10: $14.80
10-100: $12.64
100-250: $11.60
250-500: $11.04
500-1000: $10.66
AD9225ARSZRL
AD9225ARSZRL

IC ADC 12BIT 25MSPS 28SSOP
Data Sheet
0-1500: $10.66
