Product Summary
The AT28C16-15PI is a 16K memory organized as 2,048 words by 8 bits. The AT28C16-15PI is manufactured with reliable nonvolatile CMOS technology.The AT28C16-15PI is accessed like a static RAM for the read or write cycles without the need of external components. During a byte write, the address and data are latched internally, freeing the microprocessor address and data bus for other operations. Following the initiation of a write cycle, the AT28C16-15PI will go to a busy state and automatically clear and write the latched data using an internal control timer. The end of a write cycle can be determined by DATA POLLING of I/O7. Once the end of a write cycle has been detected, a new access for a read or a write can begin.
Parametrics
AT28C16-15PI absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.
Features
AT28C16-15PI features: (1)Fast Read Access Time - 150 ns; (2)Fast Byte Write - 200μs or 1 ms; (3)Self-Timed Byte Write Cycle: Internal Address and Data Latches; Internal Control Timer; Automatic Clear Before Write; (4)Direct Microprocessor Control: DATA POLLING; (5)Low Power: 30 mA Active Current; 100μA CMOS Standby Current; (6)High Reliability: Endurance: 104 or 105 Cycles; Data Retention: 10 Years; (7)5V ±10% Supply; (8)CMOS & TTL Compatible Inputs and Outputs; (9)JEDEC Approved Byte Wide Pinout; (10)Commercial and Industrial Temperature Ranges.

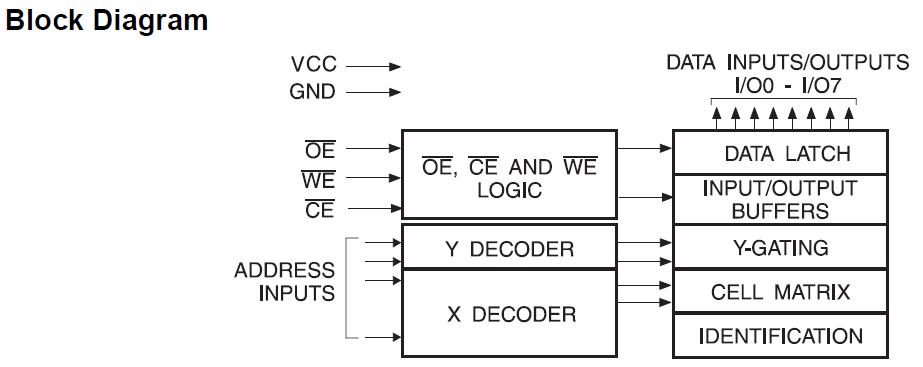

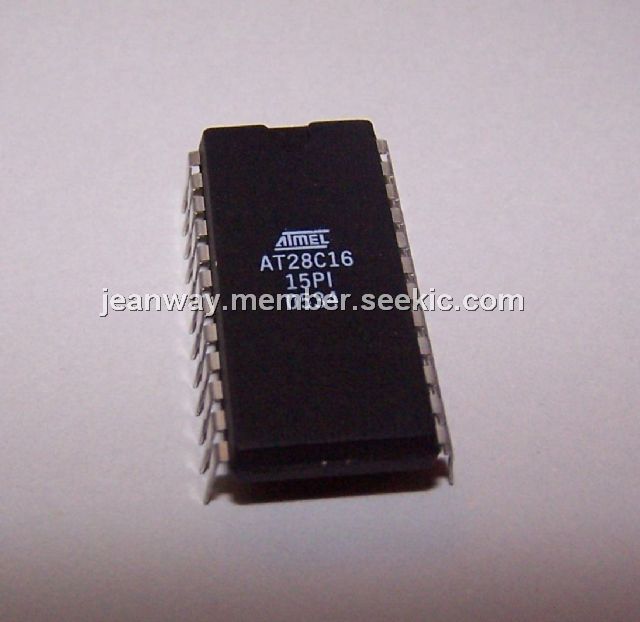

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
AT28C16-15PI |
Atmel |
EEPROM 16k bit |
Data Sheet |
Negotiable |
|
|||||
