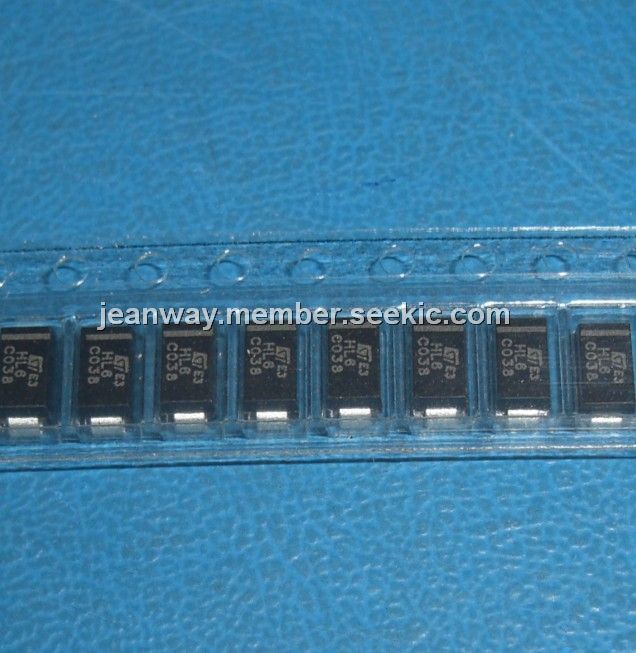

Product Summary

The STTH1L06A, which is using ST Turbo 2 600V technology, is specially suited as boost diode in discontinuous or critical mode power factor corrections. The device is also intended for use as a free wheeling diode in power supplies and other power switching applications.

Parametrics

Absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 600V; (2)RMS forward current, DO-41, IF(RMS): 10A; (3)RMS forward current, SMA / SMB: 7A; (4)Average forward current, Tl = 120℃ d = 0.5 DO-41, IF(AV): 1A; (5)Average forward current, TI = 135℃ d = 0.5 SMA, IF(AV): 1A; (6)Average forward current, TI = 145℃ d = 0.5 SMB, IF(AV): 1A; (7)Surge non repetitive forward current, tp = 10 ms Sinusoidal DO-41, IFSM: 30A; (8)Surge non repetitive forward current, tp = 10 ms Sinusoidal SMA / SMB, IFSM: 20A; (9)Storage temperature range, Tstg: - 65 + 175℃; (10)Maximum operating junction temperature, Tj: +175℃.

Features

Features: (1)Ultrafast switching; (2)Low reverse recovery current; (3)Reduces switching and conduction losses; (4)Low thermal resistance.

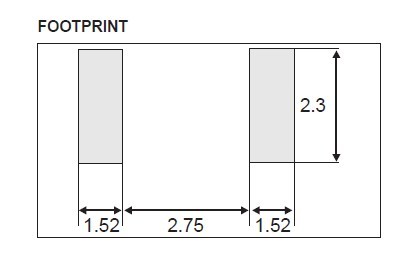

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STTH1L06A
STTH1L06A

STMicroelectronics

Rectifiers 1.0 Amp 600 Volt

Data Sheet

0-1: $0.28
1-10: $0.20
10-100: $0.18
100-250: $0.15
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STTH10002TV1
STTH10002TV1

STMicroelectronics

Rectifiers ULTRAFAST RECOVERY DIODE

Data Sheet

0-1: $10.15
1-10: $9.84
10-100: $9.20
100-250: $8.96
STTH10002TV2
STTH10002TV2

STMicroelectronics

Rectifiers ULTRAFAST RECOVERY DIODE

Data Sheet

0-1: $10.15
1-10: $9.84
10-100: $9.20
100-250: $8.96
STTH1002CB
STTH1002CB

STMicroelectronics

Rectifiers 2x8 Amp 200 Volt

Data Sheet

0-1: $0.43
1-10: $0.38
10-100: $0.32
100-250: $0.30
STTH1002CB-TR
STTH1002CB-TR

STMicroelectronics

Rectifiers 2x8 Amp 200 Volt

Data Sheet

0-1700: $0.27
1700-2500: $0.25
2500-5000: $0.23
5000-10000: $0.22
STTH1002CBY-TR
STTH1002CBY-TR


DIODE ULT FAST 200V 8A DPAK

Data Sheet

0-1: $0.74
1-10: $0.65
10-25: $0.59
25-100: $0.51
100-250: $0.45
250-500: $0.40
500-1000: $0.32
STTH1002C
STTH1002C

Other


Data Sheet

Negotiable
