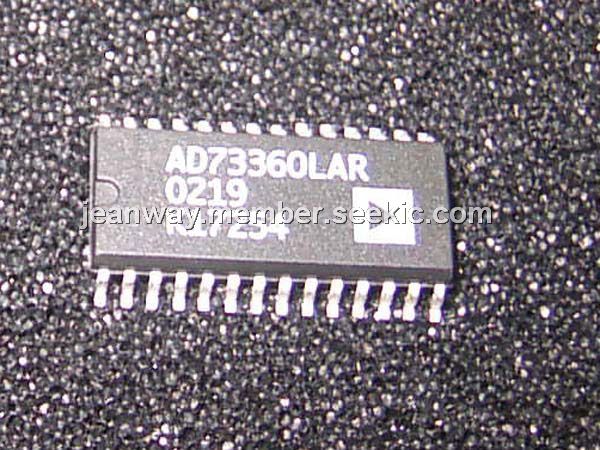

AD73360LAR

six-input channel, analog front-end processor, SOP, –0.3 V to +4.6 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: AD73360LAR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-06

From Other Seller

Part Number:AD73360LAR
US $1.50 - 2.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

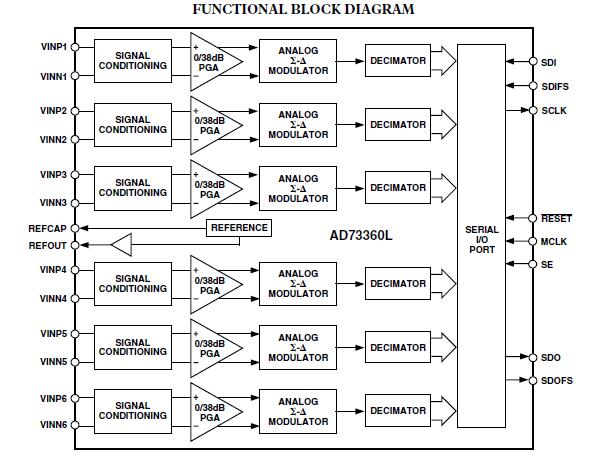

The AD73360LAR is a six-input channel analog front-end processor for general-purpose applications, including industrial power metering or multichannel analog inputs. The AD73360LAR features six 16-bit A/D conversion channels, each of which provides 76 dB signalto-noise ratio over a dc-to-4 kHz signal bandwidth. Each channel also features a programmable input gain amplifier (PGA) with gain settings in eight stages from 0 dB to 38 dB. The AD73360LAR is particularly suitable for industrial power metering as each channel samples synchronously, ensuring that there is no (phase) delay between the conversions. The AD73360LAR also features low group delay conversions on all channels.

Parametrics

AD73360LAR absolute maximum ratings: (1)AVDD, DVDD to GND: –0.3 V to +4.6 V; (2)AGND to DGND: –0.3 V to +0.3 V; (3)Digital I/O Voltage to DGND: –0.3 V to DVDD + 0.3 V; (4)Analog I/O Voltage to AGND: –0.3 V to AVDD; (5)Operating Temperature Range Industrial (A Version): –40 to +85℃; (6)Storage Temperature Range: –65 to +150℃; (7)Maximum Junction Temperature: 150℃; (8)SOIC, θJA Thermal Impedance: 75℃/W; (9)Lead Temperature, Soldering; (10)Vapor Phase (60 sec): 215℃; (11)Infrared (15 sec): 220℃.

Features

AD73360LAR features: (1)Six 16-Bit A/D Converters; (2)Programmable Input Sample Rate; (3)Simultaneous Sampling; (4)76 dB SNR; (5)64 kS/s Maximum Sample Rate; (6)–95 dB Crosstalk; (7)Low Group Delay (25 s Typ per ADC Channel); (8)Programmable Input Gain; (9)Flexible Serial Port Which Allows Multiple Devices to Be Connected in Cascade; (10)Single (2.7 V to 3.6 V) Supply Operation; (11)80 mW Max Power Consumption at 2.7 V; (12)On-Chip Reference; (13)28-Lead SOIC Package.
