Product Summary

The AT28HC256-70PC is a high-performance Electrically Erasable and Programmable Read Only Memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with advanced nonvolatile CMOS technology, the AT28HC256-70PC offers access times to 70 ns with power dissipation of just 440 mW. When the device is deselected, the standby current is less than 5 mA.

Parametrics

AT28HC256-70PC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins)with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28HC256-70PC features: (1)Fast Read Access Time - 70 ns; (2)Low Power Dissipation: 80 mA Active Current; 3 mA Standby Current; (3)Hardware and Software Data Protection; (4)DATA Polling for End of Write Detection; (5)Single 5V ±10% Supply; (6)CMOS and TTL Compatible Inputs and Outputs; (7)JEDEC Approved Byte-Wide Pinout; (8)Full Military, Commercial, and Industrial Temperature Ranges.

Diagrams

AT28HC256-70PC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

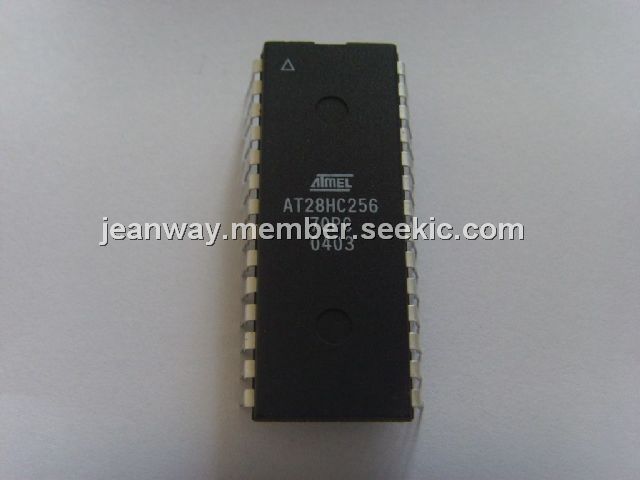

AT28HC256-70PC
AT28HC256-70PC

Atmel

EEPROM 256K 5V SDP- 70NS COM TEMP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT28BV16
AT28BV16

Other


Data Sheet

Negotiable
AT28BV16-25JC
AT28BV16-25JC

Atmel

EEPROM 16k bit

Data Sheet

Negotiable
AT28BV16-25JI
AT28BV16-25JI

Atmel

IC EEPROM 16K 2.7V 32PLCC

Data Sheet

Negotiable
AT28BV16-25PC
AT28BV16-25PC


IC EEPROM 16KBIT 250NS 24DIP

Data Sheet

Negotiable
AT28BV16-25PI
AT28BV16-25PI

Atmel

IC EEPROM 16K 2.7V 24DIP

Data Sheet

Negotiable
AT28BV16-25SC
AT28BV16-25SC

Atmel

EEPROM 16k bit

Data Sheet

Negotiable
