Product Summary

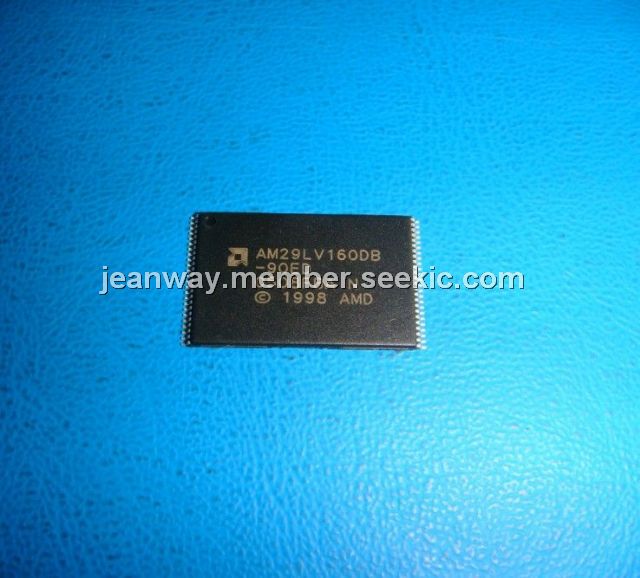

The AM29LV160DB-90ED is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The device can also be programmed in standard EPROM programmers.
Parametrics
Absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC: –0.5V to +4.0V; (4)A9, OE, and RESET: –0.5 V to +12.5V; (5)All other pins: –0.5 V to VCC+0.5V; (6)Output Short Circuit Current: 200mA.
Features
Features: (1)Single power supply operation; (2)Manufactured on 0.23 μm process technology; (3)High performance; (4)Ultra low power consumption; (5)Flexible sector architecture; (6)Unlock Bypass Program Command; (7)Top or bottom boot block configurations available.

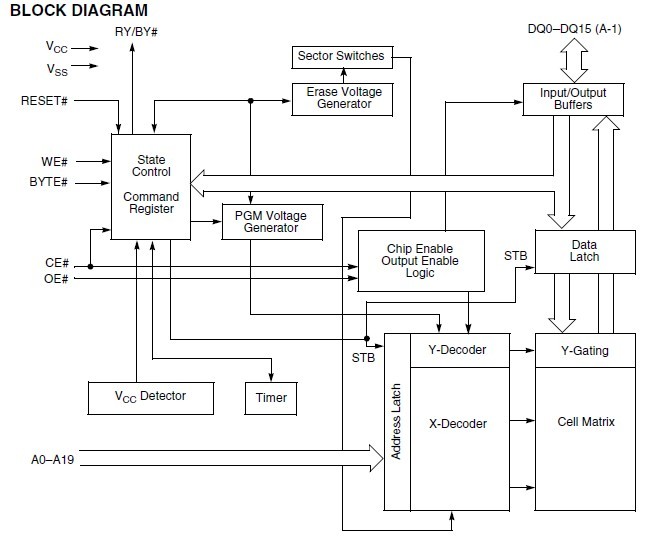

Diagrams
