Product Summary

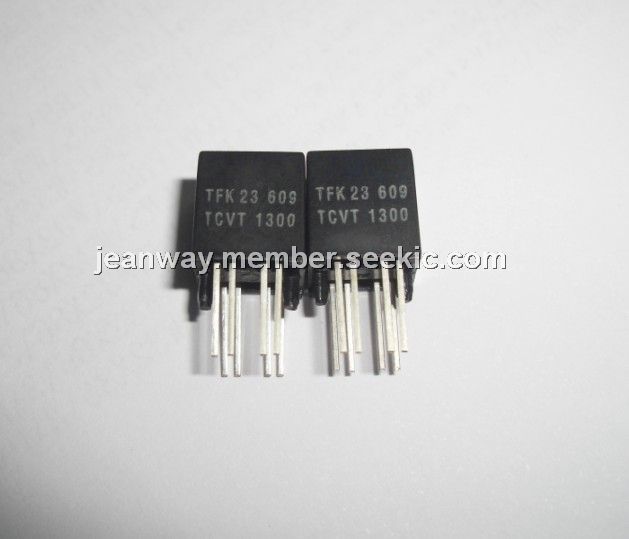

The tcvt1300 has a compact construction where the emitting-light sources and the detectors are located face-to-face on the same optical axes. The operating wavelength is 950 nm. The detectors consists of a phototransistors. The distance of both channels is 2.66 mm.
Parametrics
Absolute maximum ratings: (1)Reverse voltage, VR: 5V; (2)Forward current, IF: 50mA; (3)Forward surge current, tp ≤ 10us, IFSM: 3A; (4)Power dissipation, Tamb ≤ 25℃, PV: 100mW; (5)Junction temperature, Tj: 100℃; (6)Collector emitter voltage, VCEO: 70V; (7)Emitter collector voltage, VECO: 7V; (8)Collector current, IC: 50mA; (9)Power dissipation, Tamb ≤ 25℃, PV: 100mW; (10)Junction temperature, Tj: 100℃; (11)Total power dissipation, Tamb ≤ 25℃, Ptot: 200mW; (12)Operation temperature range, Tamb: –25 to +85℃; (13)Storage temperature range, Tstg: –25 to +100℃; (14)Soldering temperature, 2 mm from case, t ≤ 5s, Tsd: 260℃.
Features
Features: (1)Channel 1 to channel 2 distance 2.66 mm (optical center); (2)Gap 1.5 mm; (3)Package height: 10 mm; (4)Plastic polycarbonate housing; (5)Aperture 0.2 mm for both channels; (6)Current Transfer Ratio (CTR) of typical 2%.
