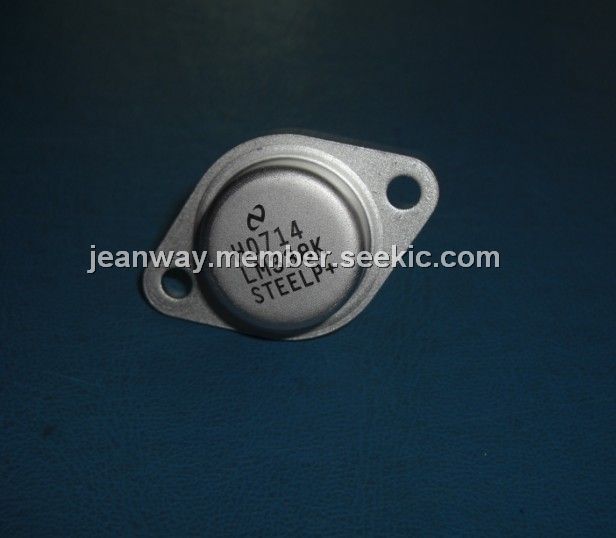

LM338K

3-terminal positive voltage regulators, TO-3, 1.2V to 32V output range

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: LM338K

Brand:: National Semiconductor - NS | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-05

From Other Seller

Part Number:LM338K
US $2.00 - 3.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM338K of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 5A over a 1.2V to 32V output range. It is exceptionally easy to use and require only 2 resistors to set the output voltage. Careful circuit design has resulted in outstanding load and line regulation— comparable to many commercial power supplies. The LM338K is supplied in a standard 3-lead transistor package. A unique feature of the LM338K is time-dependent current limiting. The current limit circuitry allows peak currents of up to 12A to be drawn from the regulator for short periods of time. This allows the LM338K to be used with heavy transient loads and speeds start-up under full-load conditions. Under sustained loading conditions, the current limit decreases to a safe value protecting the regulator. Also included on the chip are thermal overload protection and safe area protection for the power transistor. Overload protection remains functional even if the adjustment pin is accidentally disconnected.

Parametrics

Absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input/Output Voltage Differential: +40V, -0.3V; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temperature of Metal Package (Soldering, 10 seconds): 300℃; (5)Lead Temperature of Plastic Package (Soldering, 4 seconds): 260℃; (6)ESD Tolerance TBD Operating Temperature Range: LM338 0℃ ≦ TJ ≦ +125℃.

Features

Features: (1)Guaranteed 7A peak output current; (2)Guaranteed 5A output current; (3)Adjustable output down to 1.2V; (4)Guaranteed thermal regulation; (5)Current limit constant with temperature; (6)P+ Product Enhancement tested; (7)Output is short-circuit protected.
