Product Summary

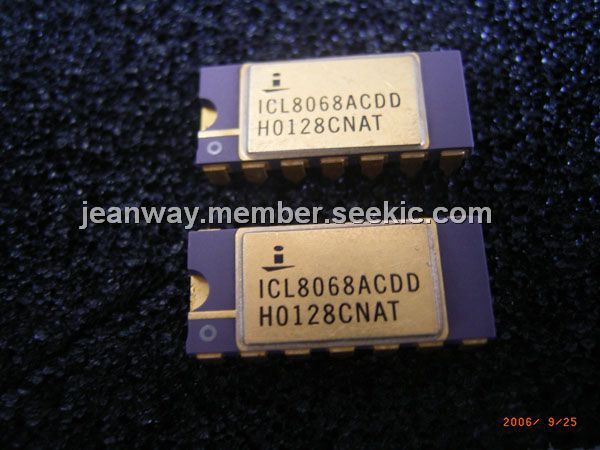

The ICL8068ACDD is a type of 14-Bit, 16-Bit Microprocessor, which performs the analog switching and digital function for a 16-bit binary A/D converter, with full three-state output, UART handshake capability, and other outputs for easy interfacing. The analog section of the ICL8068ACDD provides fully precise Auto-Zero, Auto-Polarity (including ±0 null indication), single reference operation, very high input impedance, fully rationmetric operation, over-range indication, and a medium quality built-in reference.

Parametrics

ICL8068ACDD maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±15V; (4)Maximum Junction Temperature (Ceramic Package): 175℃; (5)Maximum Junction Temperature (Plastic Package):150℃; (6)Maximum Storage Temperature Range: -65℃ to 150℃; (7)Maximum Lead Temperature (Soldering, 10s): 300℃.

Features

ICL8068ACDD features: (1)16-Bit/14-Bit Binary Three-State Latched Outputs Plus Polarity and Overrange; (2)Ideally Suited for Interface to UARTs and Microprocessors; (3)Conversion on Demand or Continuously; (4)Guaranteed Zero Reading for 0V Input; (5)True Polarity at Zero Count for Precise Null Detection; (6)Single Reference Voltage for True Ratiometric Operation; (7)Onboard Clock and Reference; (8)Auto-Zero, Auto-Polarity; (9)Accuracy Guaranteed to 1 Count; (10)All Outputs TTL Compatible; (11)±4V Analog Input Range.
