Product Summary

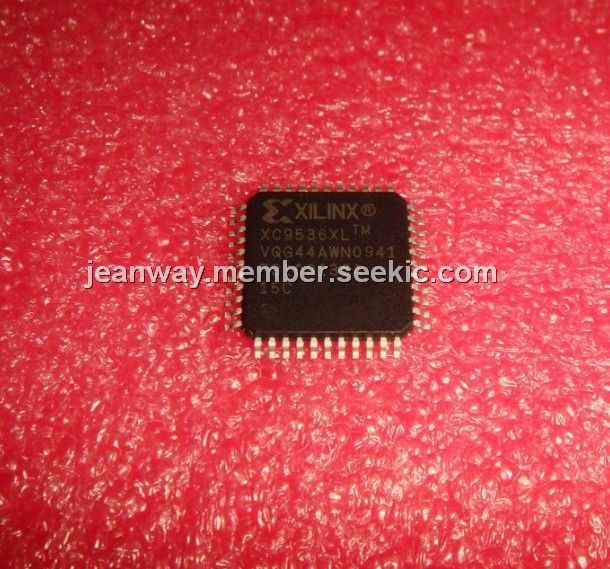

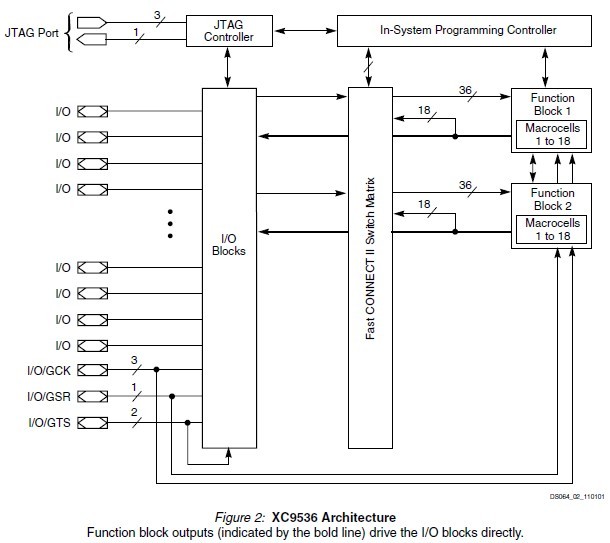

The XC9536XL-15VQG44I is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns.

Parametrics

Absolute maximum ratings: (1)Supply voltage relative to GND, VCC: –0.5 to 7.0V; (2)Input voltage relative to GND, VIN: –0.5 to VCC + 0.5V; (3)Voltage applied to 3-state output, VTS: –0.5 to VCC + 0.5V; (4)Storage temperature (ambient), TSTG: –65 to +150℃; (5)Junction temperature, TJ: +150℃.

Features

Features: (1)5 ns pin-to-pin logic delays on all pins; (2)fCNT to 100 MHz; (3)36 macrocells with 800 usable gates; (4)Up to 34 user I/O pins; (5)5V in-system programmable; (6)Enhanced pin-locking architecture; (7)Flexible 36V18 Function Block; (8)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (9)Programmable power reduction mode in each macrocell; (10)Slew rate control on individual outputs; (11)User programmable ground pin capability; (12)Extended pattern security features for design protection; (13)High-drive 24 mA outputs; (14)3.3V or 5V I/O capability; (15)Advanced CMOS 5V FastFLASH technology; (16)Supports parallel programming of more than one XC9500 concurrently; (17)Available in 44-pin PLCC, 44-pin VQFP, 48-pin CSP packages.
