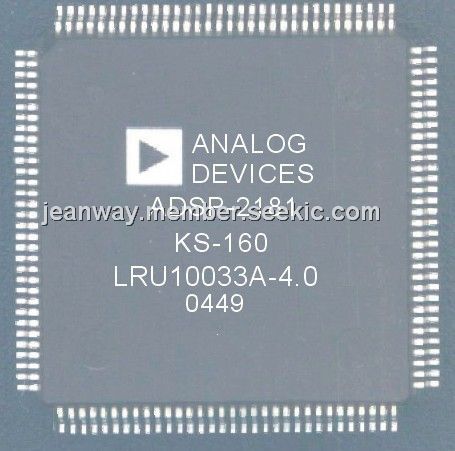

Product Summary
The ADSP-2181KST-160 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. It combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory. The ADSP-2181KST-160 integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM, and 16K words (16-bit) of data RAM. Power-down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2181KST-160 is available in 128-lead TQFP package.
Parametrics
ADSP-2181KST-160 absolute maximum ratings: (1)supply voltage: -0.3V to 7 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Output Voltage Swing: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient): –40 to +85℃; (5)Storage Temperature Range: –65 to +150℃; (6)Lead Temperature (5 sec): +280℃.
Features
ADSP-2181KST-160 features: (1)25 ns Instruction Cycle Time from 20 MHz Crystal @ 5.0 Volts; (2)40 MIPS Sustained Performance; (3)Single-Cycle Instruction Execution; (4)Single-Cycle Context Switch; (5)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (6)Power-Down Mode Featuring Low CMOS Standby; (7)Power Dissipation with 100 Cycle Recovery from; (8)Power-Down Condition; (9)Low Power Dissipation in Idle Mode; (10)ADSP-2100 Family Code Compatible, with Instruction Set Extensions; (11)80K Bytes of On-Chip RAM, Configured as; (12)16K Words On-Chip Program Memory RAM; (13)16K Words On-Chip Data Memory RAM; (14)Dual Purpose Program Memory for Both Instruction and Data Storage.

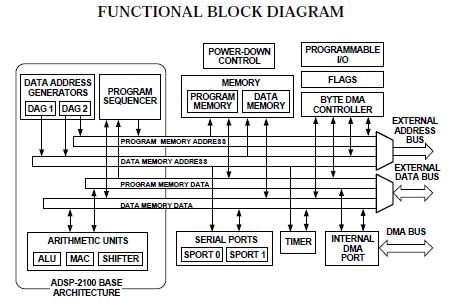

Diagrams
