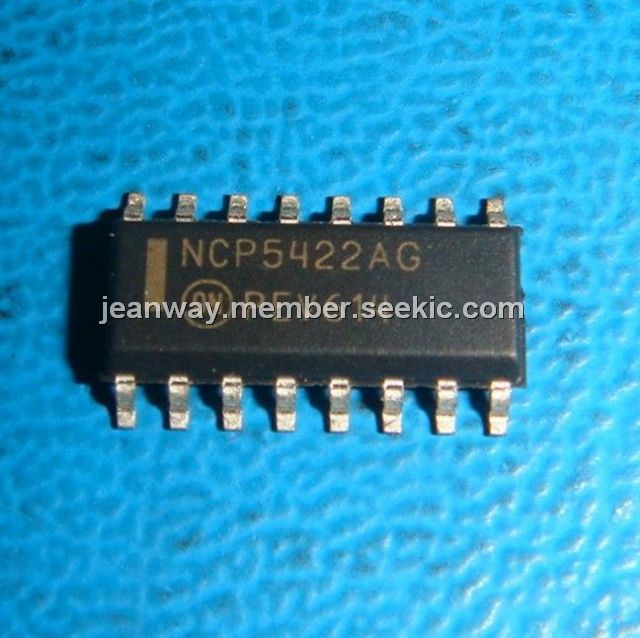

Product Summary

The NCP5422AG is a dual channel synchronous buck regulator controller. It contains all the circuitry required for two independent buck regulators and utilizes the V2 control method to achieve the fastest possible transient response and best overall regulation, while using the least number of external components. The NCP5422AG features out of phase synchronization between the channels, reducing the input filter requirement. The NCP5422AG also provides undervoltage lockout, Soft Start, built in adaptive overlap time and hiccup mode overcurrent protection.

Parametrics

NCP5422AG absolute maximum ratings: (1)Operating Junction Temperature, TJ 150℃; (2)Storage Temperature Range, TS -65 to +150 ℃; (3)ESD Susceptibility (Human Body Model) 2.0 kV; (4)Package Thermal Resistance, SO-16: Junction to Case, R JC 28℃/W; (5)Junction to Ambient, R JA: 115 ℃ /W; (6)Lead Temperature Soldering: Reflow: (Note 1): 230 peak ℃ .

Features

NCP5422AG features: (1)V Control Topology; (2)Hiccup Mode Overcurrent Protection; (3)150 ns Transient Response; (4)Programmable Soft Start; (5)100% Duty Cycle for Enhanced Transient Response; (6)150 kHz to 600 kHz Programmable Frequency Operation; (7)Switching Frequency Set by Single Resistor; (8)Out Of Phase Synchronization Between Channels; (9)Undervoltage Lockout; (10)Both Gate Drive Outputs Held Low During Fault Condition.

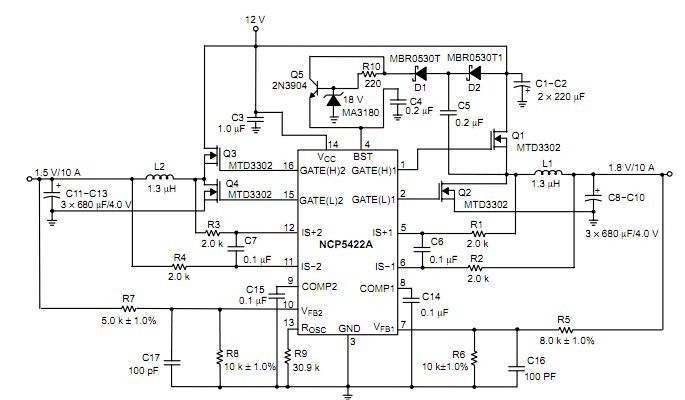

Diagrams
