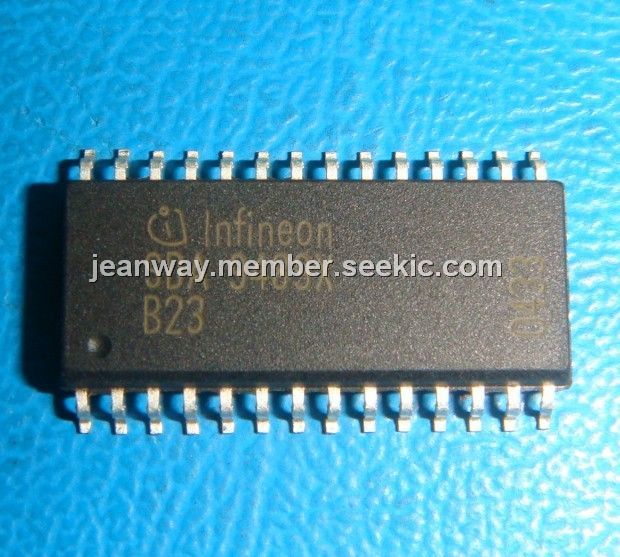

SDA9489X

Single-Chip, Multi Standard, Picture in Picture IC, SOP, 0.35 μm CMOS technology, 3.3 V supply voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: SDA9489X

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:SDA9489X
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SDA9489X is a deluxe single-chip Picture in Pic-ture IC for high end applications that requires only a small amount of external components. The applications of the SDA9489X are TVs for NTSC, PAL and SECAM (all versions each) markets, Multimedia and security appliances, Camera monitoring, Video teleconferencing.

Parametrics

SDA9489X absolute maximum ratings: (1)Ambient Temperature:0℃ to 70℃; (2)Storage Temperature:-55℃ to 125℃; (3)Junction Temperature:125℃; (4)Soldering Temperature:260℃; (5)Supply Voltages:-0.3V to 3.6V; (6)Supply Voltage Differentials:-0.25V to 0.25V; (7)Total Power Dissipation:0.86W; (8)Latch-Up Protection:-100mA to 100mA; (9)ESD robustness:-2000V to 2000V.

Features

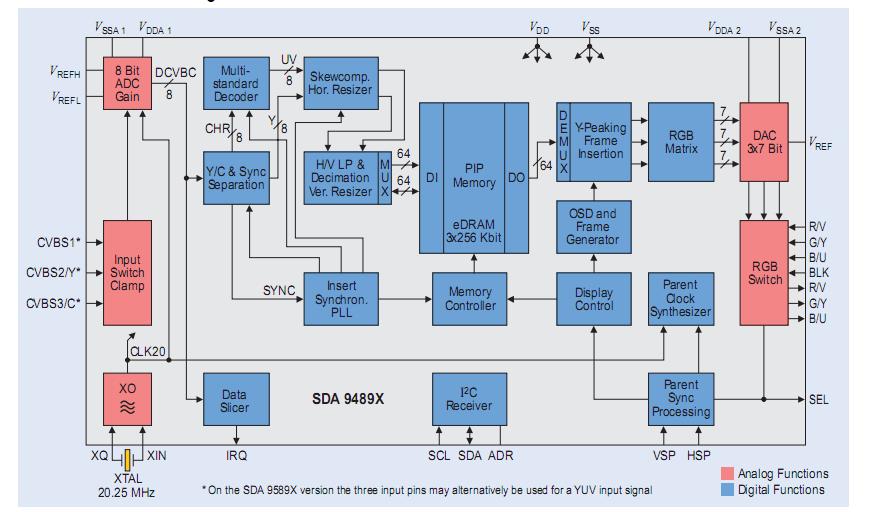

SDA9489X features: (1)Picture reduction to 1/2, 1/4, 1/9, 1/16, 1/36 and 1/81 keeping picture resolution horizontally and vertically at highest level ; (2)Horizontally and vertically independent fine variation (zooming) of subpicture between 1/4 and 1/81; (3)Freely programmable positioning of subpicture on the main picture as well as POP positioning; (4)PIP frame control including color, shape and width; (5)16:9 compatibility; (6)Digital signal processing for picture quality optimization; (7)Three CVBS inputs; at the SDA 9589X version also YUV (or full Y/C) signals may be put to the inputs; analog YUV or RGB output; (8)Integrated high speed video switch for inserting an external RGB or YUV source onto the screen (e.g. OSD); (9)18 different Multi PIP modes incl. double window mode; (10)On-screen display of 5 characters per subpicture; (11)Acquisition and filtering of closed caption and WSS data (e.g. for violence blocking purposes); (12)Wipe in/out feature; (13)Display on VGA and SVGA screens at correct aspect ratio possible; (14)I2C-Bus control ; (15)0.35μm CMOS technology; (16)3.3 V supply voltage; (17)P-DSO-28 package; (18)Full SDA 9488X compatibility.
