Product Summary

The BSM400GA170DLC is a IGBT-Module.

Parametrics

BSM400GA170DLC maximum ratings: (1)Kollektor-Emitter-Sperrspannung collector-emitter voltage VCES: 1700 V; (2)Kollektor-Dauergleichstrom TC = 80 ℃ IC,nom: 400 A; (3)DC-collector current TC = 25 ℃ IC: 800 A; (4)Periodischer Kollektor Spitzenstrom repetitive peak collctor current tP = 1 ms, TC=80℃ ICRM: 800 A; (5)Gesamt-Verlustleistung total power dissipation TC=25℃, Transistor Ptot: 3120 W; (6)Gate-Emitter-Spitzenspannung gate-emitter peak voltage VGES: +/- 20V V.

Features

BSM400GA170DLC features: (1)Breakdown Voltage [Collector to Emitter]: 1.70 kV ; (2)Power Dissipation: 3.12 kW; (3)RoHS: Non-Compliant.

Diagrams

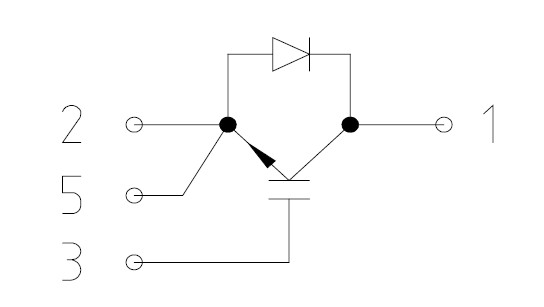

BSM400GA170DLC simplified circuit
