Product Summary

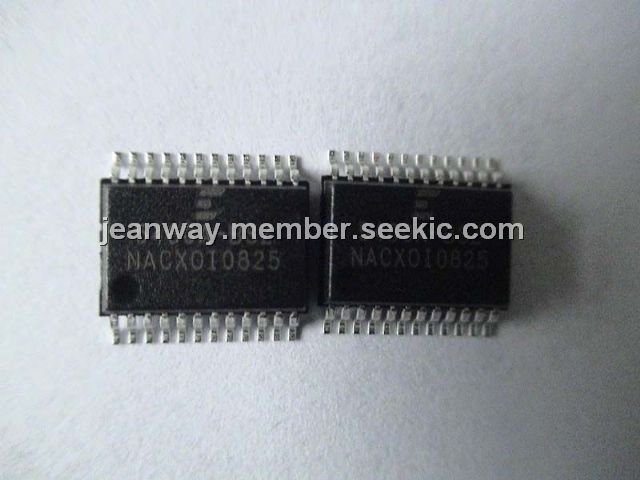

The CS5460A-BSZ is a highly integrated power measurement solution which combines two ΔΣ Analog-to-Digital Converters (ADCs), high speed power calculation functions, and a serial interface on a single chip. It is designed to accurately measure and calculate: Real (True) Energy, Instantaneous Power, IRMS, and VRMS for single phase 2- or 3-wire power metering applications. The CS5460A-BSZ interfaces to a low-cost shunt resistor or transformer to measure current, and to a resistive divider or potential transformer to measure voltage. The CS5460A-BSZ features a bi-directional serial interface for communication with a micro-controller and a pulse output engine for which the average pulse frequency is proportional to the real power. The CS5460A-BSZ has on-chip functionality to facilitate AC or DC system-level calibration.
Parametrics
CS5460A-BSZ absolute maximum ratings: (1)Input Current, Any Pin Except Supplies IIN: ±10 mA; (2)Output Current IOUT: ±25 mA; (3)Power Dissipation PD: 500 mW; (4)Analog Input Voltage All Analog Pins VINA (VA-): - 0.3 V; (5)Digital Input Voltage All Digital Pins VIND DGND: - 0.3 (VD+) + 0.3 V; (6)Ambient Operating Temperature TA: -40 - 85 ℃; (7)Storage Temperature Tstg: -65 - 150 ℃.
Features
CS5460A-BSZ features: (1)Energy Data Linearity: ±0.1% of Reading over 1000:1 Dynamic Range; (2)On-Chip Functions: (Real) Energy, I V, IRMS and VRMS, Energy-to-Pulse Conversion; (3)Smart “Auto-Boot” Mode from Serial EEPROM Enables Use without MCU; (4)AC or DC System Calibration; (5)Mechanical Counter/Stepper Motor Driver; (6)Meets Accuracy Spec for IEC 687/1036, JIS; (7)Typical Power Consumption <12 mW; (8)Interface Optimized for Shunt Sensor; (9)V vs. I Phase Compensation; (10)Ground-Referenced Signals with Single Supply; (11)On-chip 2.5 V Reference (MAX 60 ppm/℃ drift).

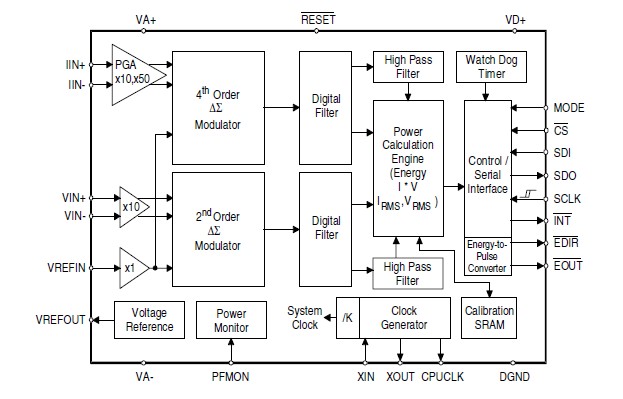

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5460A-BSZ |
Cirrus Logic |
Other Power Management Single-Phase Bi-Dir Power/Energy IC |
Data Sheet |
|
|
||||||||||||
|
CS5460A-BSZR |
Cirrus Logic |
Other Power Management IC Sngl-Phs BiDirect PWR/Energy |
Data Sheet |
|
|
||||||||||||
