Product Summary

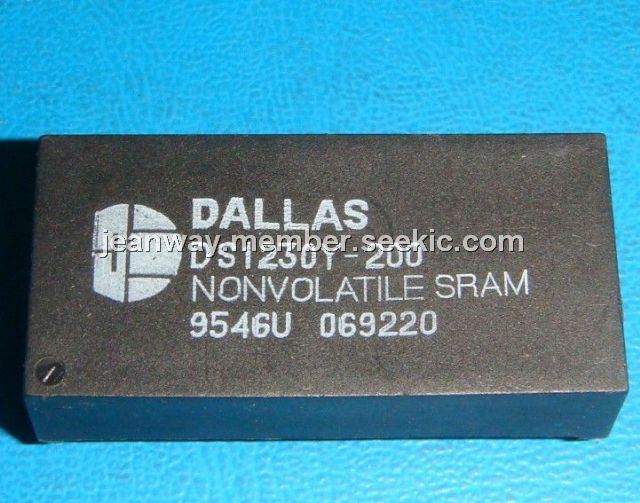

The DS1230Y-200 256k Nonvolatile SRAM is 262,144-bit, fully static, nonvolatile SRAM organized as 32,768 words by 8 bits. Each NV SRAM has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition. When such a condition occurs, the lithium energy source is automatically switched on and write protection is unconditionally enabled to prevent data corruption.

Parametrics

DS1230Y-200 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +7.0V; (2)Operating Temperature: 0℃ to 70℃, -40℃ to +85℃ for IND parts; (3)Storage Temperature: -40℃ to +70℃, -40℃ to +85℃ for IND parts; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1230Y-200 features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Replaces 32k x 8 volatile static RAM, EEPROM or Flash memory; (4)Unlimited write cycles; (5)Low-power CMOS; (6)Read and write access times as fast as 70 ns; (7)Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time; (8)Full ±10% VCC operating range (DS1230Y); (9)Optional ±5% VCC operating range (DS1230AB); (10)Optional industrial temperature range of -40℃ to +85℃, designated IND; (11)JEDEC standard 28-pin DIP package.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS1230Y-200
DS1230Y-200
Maxim Integrated Products
NVRAM 256k Nonvolatile SRAM
Data Sheet
Negotiable
DS1230Y-200+
DS1230Y-200+
Maxim Integrated Products
NVRAM 256k Nonvolatile SRAM
Data Sheet
0-1: $20.09
1-25: $13.49
25-50: $9.77
50-100: $9.66
DS1230Y-200IND+
DS1230Y-200IND+
Maxim Integrated Products
NVRAM 256k Nonvolatile SRAM
Data Sheet
0-1: $9.65
1-25: $9.29
25-100: $8.93
100-500: $8.74
DS1230Y-200IND
DS1230Y-200IND
Maxim Integrated Products
NVRAM 256k Nonvolatile SRAM
Data Sheet
Negotiable
