Product Summary
The MAX1837EUT50 high efficiency stepdown converter provides a preset 3.3V or 5V output voltage from supply voltages as high as 24V. Using external feedback resistors, the output voltage may be adjusted from 1.25V to VIN. An internal current-limited switching MOSFET delivers load currents up to 125 mA.
Parametrics
MAX1837EUT50 absolute maximum ratings: (1)IN, SHDN to GND: -0.3V to +25V; (2)LX to GND: -2V to (VIN + 0.3V); (3)OUT, FB to GND: -0.3V to +6V; (4)Continuous Power Dissipation (TA = +70℃ ) (Note 1), 6-Pin SOT23 (derate 8.7mW/℃ above +70℃ ): 696mW; (5)Operating Temperature Range: -40℃ to +85℃ ; (6)Junction Temperature: +150℃ ; (7)Storage Temperature Range: -65℃ to +150℃ ; (8)Lead Temperature (soldering, 10s): +300℃ .
Features
MAX1837EUT50 features: (1)4.5V to 24V Input Voltage Range; (2)Preset 3.3V or 5V Output; (3)Adjustable Output from 1.25V to VIN; (4)Output Currents Up to 125mA (MAX1836) or 250mA (MAX1837); (5)Internal P-Channel MOSFET; (6)Efficiency Over 90%; (7)12μA Quiescent Current; (8)3μA Shutdown Current; (9)100% Maximum Duty Cycle for Low Dropout; (10)Current-Limiting and Overtemperature Protection; (11)Small 6-Pin SOT23 Package.

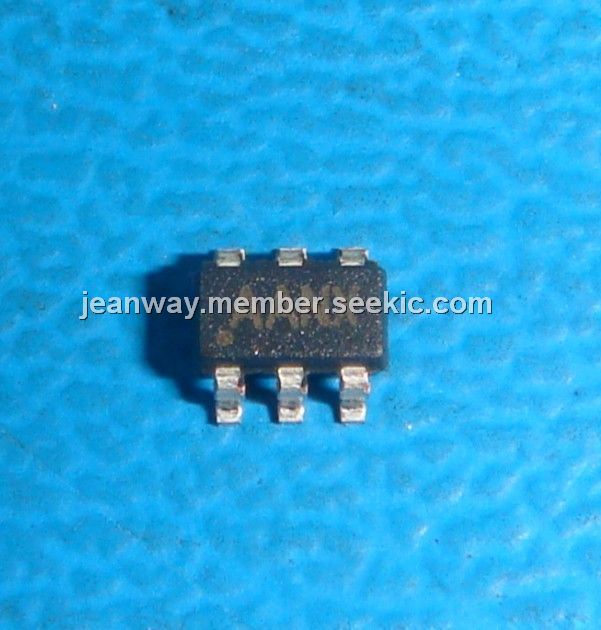

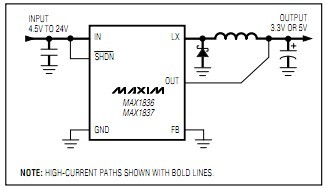

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1837EUT50#TG16 |
Maxim Integrated Products |
DC/DC Switching Converters 24V 100% Duty Cycle |
Data Sheet |
Negotiable |
|
||||||||
|
MAX1837EUT50+T |
Maxim Integrated Products |
DC/DC Switching Converters 24V 100% Duty Cycle |
Data Sheet |
|
|
||||||||
 |
MAX1837EUT50-T |
Maxim Integrated Products |
DC/DC Switching Converters 24V 100% Duty Cycle |
Data Sheet |
Negotiable |
|
||||||||
