Product Summary

The MC9S12DP256BMPV is a 16-bit microcontroller unit (MCU). The MC9S12DP256BMPV is composed of standard on-chip peripherals. The MC9S12DP256BMPV has full 16-bit data paths throughout. However, the external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for lower cost systems. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements.

Parametrics

MC9S12DP256BMPV absolute maximum ratings: (1)I/O, Regulator and Analog Supply Voltage, VDD5: -0.3 to 6.0 V; (2)Digital Logic Supply Voltage, VDD: -0.3 to 3.0 V; (3)PLL Supply Voltage, VDDPLL: -0.3 3.0 V; (4)Voltage difference VDDX to VDDR and VDDA, VDDX: -0.3 to 0.3 V; (5)Voltage difference VSSX to VSSR and VSSA, VSSX: -0.3 to 0.3 V; (6)Digital I/O Input Voltage, VIN: -0.3 to 6.0 V; (7)Analog Reference VRH, VRL: -0.3 to 6.0 V; (8)XFC, EXTAL, XTAL inputs, VILV: -0.3 to 3.0 V; (9)TEST input, VTEST: -0.3 to 10.0 V; (10)Instantaneous Maximum Current Single pin limit for all digital I/O pins, ID: -25 to +25 mA; (11)Instantaneous Maximum Current Single pin limit for XFC, EXTAL, XTAL, IDL: -25 to +25 mA; (12)Instantaneous Maximum Current Single pin limit for TEST, IDT: -0.25 to 0 mA; (13)Storage Temperature Range, Tstg: – 65 to 155℃.

Features

MC9S12DP256BMPV features: (1)Programmable period and duty cycle; (2)8-bit 8-channel or 16-bit 4-channel; (3)Separate control for each pulse width and duty cycle; (4)Center-aligned or left-aligned outputs; (5)Programmable clock select logic with a wide range of frequencies; (6)Fast emergency shutdown input; (7)Usable as interrupt inputs; (8)Two asynchronous Serial Communications Interfaces (SCI); (9)Three Synchronous Serial Peripheral Interface (SPI); (10)Compatible with I2C Bus standard; (11)Multi-master operation; (12)Software programmable for one of 256 different serial clock frequencies.

Diagrams

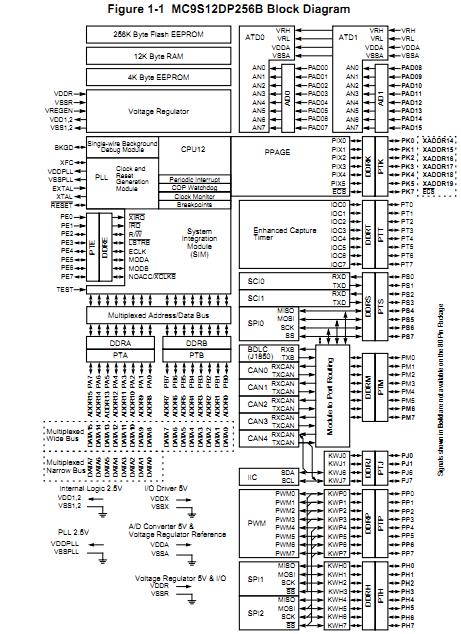

MC9S12DP256BMPV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

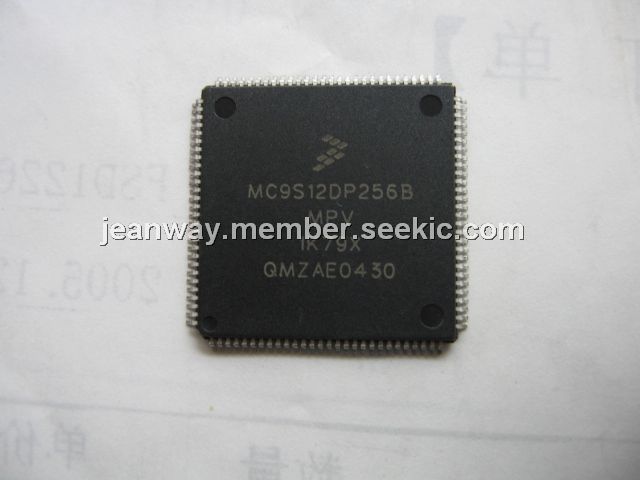

MC9S12DP256BMPV
MC9S12DP256BMPV
Freescale Semiconductor
16-bit Microcontrollers (MCU) 16 Bit 25MHz
Data Sheet
Negotiable
