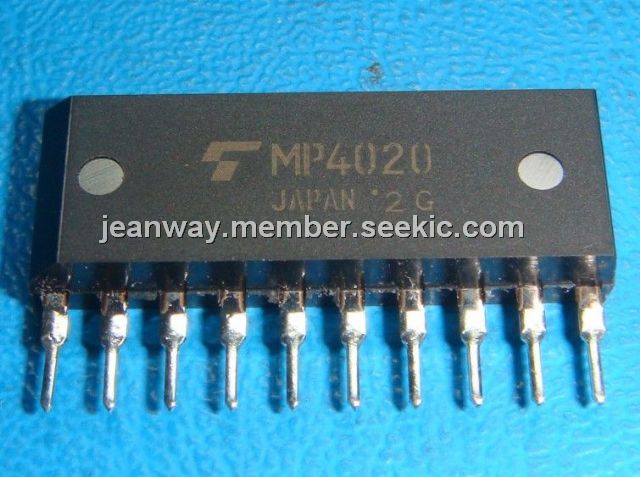

Product Summary

The MP4020 is a Power Transistor Module. The device is suitable for High Power Switching Applications, Hammer Drive, Pulse Motor Drive and Inductive Load Switching.

Parametrics

MP4020 absolute maximum ratings: (1)Collector-base voltage, VCBO: 50 V; (2)Collector-emitter voltage, VCEO: 60 ± 10 V; (3)Emitter-base voltage, VEBO: 8 V; (4)Collector current, DC, IC: 2A; Pulse, ICP: 3A; (5)Continuous base current, IB: 0.5 A; (6)Collector power dissipation (1 device operation), PC: 2.0 W; (7)Collector power dissipation (4 devices operation), PT: 4.0 W; (8)Junction temperature, Tj: 150℃; (9)Storage temperature range, Tstg: -55 to 150℃.

Features

MP4020 features: (1)Small package by full molding (SIP 10 pins); (2)High collector power dissipation (4-device operation): PT = 4 W (Ta = 25℃); (3)High collector current: IC (DC) = 2 A (max); (4)High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = 1 A); (5)Zener diode included between collector and base.

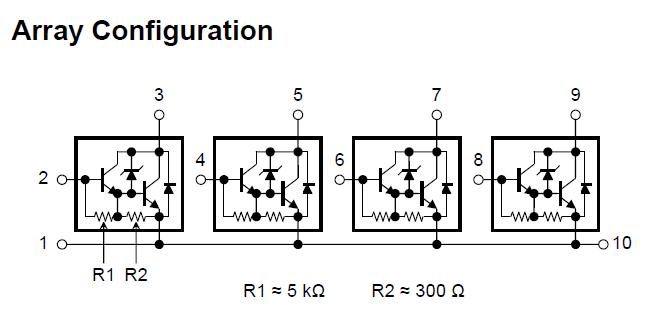

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MP4020GS-LF
MP4020GS-LF
Monolithic Power Systems (MPS)
LED Lighting Drivers Offline WLED Driver Controller
Data Sheet
0-1: $1.26
1-25: $1.17
25-100: $1.08
100-500: $0.99
MP4020GS-LF-Z
MP4020GS-LF-Z
Monolithic Power Systems (MPS)
LED Lighting Drivers Offline WLED Driver Controller
Data Sheet
0-1750: $0.90
1750-2000: $0.86
2000-2500: $0.86
2500-5000: $0.84
MP4020(F)
MP4020(F)

TRANS MOD NPN QUAD 60V 2A 10-SIP
Data Sheet
0-160: $0.86
MP4020
MP4020
Other

Data Sheet
Negotiable
