Product Summary
The SFH551V is a transimpedance amplifier with digital TTL open collector output stage and integrated photodiode. The active area of the detector in connection with the molded microlens gives an efficient coupling from the end of a plastic fiber. The receiver is fully DC coupled and therefore no line code is needed. The SFH551V includes a Schmitt trigger function to provide stable output states over the whole dynamic range. For optical input power levels above 6 μW typically the electrical output will be logical "low" and vice versa. With noise free Vcc and GND no undefined output signal is possible. The SFH551V must not be used without shielding the ambient light, because ambient light causes malfunction when reaching the threshold level, noise or complete switching the output. Interference free transmission is possible by using the SFH551V with the black plastic connector housing.
Parametrics
SFH551V absolute maximum ratings: (1)Operating Temperature Range TOP: –40 +85 ℃; (2)Storage Temperature Range TSTG: –40 +100 ℃; (3)Soldering Temperature(2 mm from case bottom, t ≤ 5 s): TS 260 ℃; (4)Supply Voltage Range without Damage VCC: –0.5 15 V; (5)Recommended and Guaranteed Maximum Voltage: 5.5 V; (6)Minimum Supply Voltage for Function VCCmin: 4 V; (7)Minimum Pull-up Resistance(VCC = 5 V) Routmin: 330 Ω; (8)Output Voltage V0: –0.5 15 V; (9)Output Current I0: 50 mA; (10)Power Dissipation (output) P0: 100 mW.
Features
SFH551V features: (1)Bipolar IC with open-collector output; (2)Digital output, TTL compatible; (3)Sensitive in visible and near IR range; (4)Low switching threshold; (5)Transfer rate 5 Mbit/s; (6)2.2 mm aperture holds standard 1000 micron plastic fiber; (7)No fiber stripping required; (8)Molded microlens for efficient coupling.

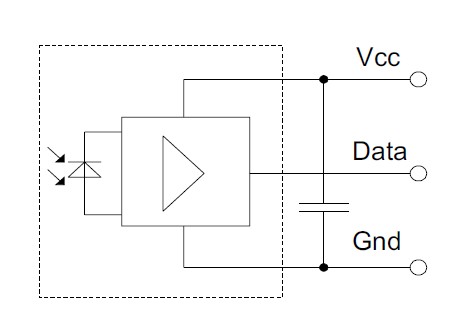

Diagrams

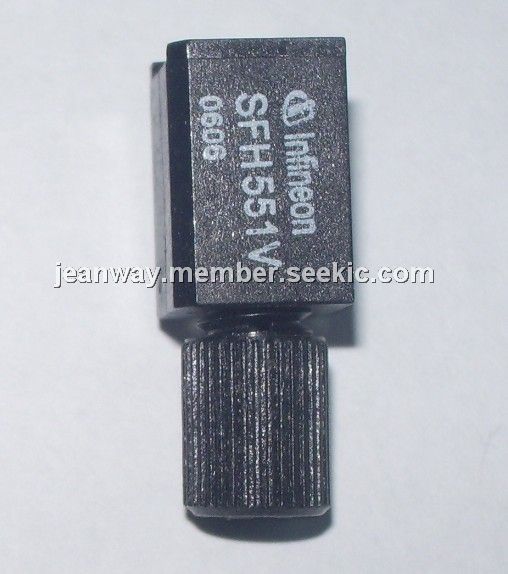

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
SFH551V |
Other |
Data Sheet |
Negotiable |
|
||||||
SFH551V/1 |
Other |
Data Sheet |
Negotiable |
|
