Product Summary

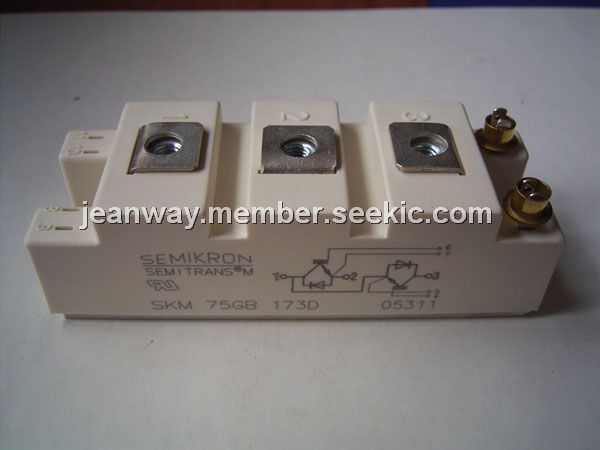

The SKM75GB173D is an IGBT Module. The applications of the device include AC inverter drives on mains 575 - 750 VAC, DC bus voltage 750 - 1200 VDC, Public transport (auxiliary syst.) and Switching (not for linear use).
Parametrics
SKM75GB173D absolute maximum ratings: (1)VCES: 1700 V; (2)VCGR: 1700V when RGE = 20 kW; (3)IC: 75/50A when Tcase = 25/80℃; (4)ICM: 144/100A when Tcase = 25/80℃; tp = 1 ms; (5)VGES: ± 20 V; (6)Ptot: 500W when per IGBT, Tcase = 25℃; (7)Tj, (Tstg): –40 to+150 (125) ℃; (8)Visol : 4000V when AC, 1 min; (9)humidity: Class F when DIN 40 040 ; (10)climate: 40/125/56 when DIN IEC 68 T.1; (11)IF=–IC: 60/40A when Tcase = 25/80℃; (12)IFM=–ICM: 144/100A when Tcase = 25/80℃; tp = 1 ms; (13)IFSM: 550A when tp = 10 ms; sin.; Tj = 150℃; (14)I2t: 1500A2S when tp = 10 ms; Tj = 150℃.
Features
SKM75GB173D features: (1)MOS input (voltage controlled); (2)N channel, Homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DCB Direct Copper Bonding; (9)Large clearance (10 mm) and creepage distances (20 mm).
