Product Summary

The STI5514SWC is a Set-top box decoder with hard disk drive capability for digital TV, digital set-top box or cable box. It integrates a 32-bit CPU, an MPEG-2 decoder and many of the peripheral functions required by today’s powerful STBs. Additionally, the STI5514SWC can simultaneously demultiplex three transport streams and manage multiple descrambling modes and conditional access standards, making it the ideal solution for low cost STBs requiring DVR (digital video recorder) functionality.The STI5514SWC provides a scalable STB decoding solution reducing time to market for manufacturers by making the reuse of hardware and software components as easy as possible across a range of products.

Features

STI5514SWC features: (1)180 MHz 32-bit ST20 CPU: 8 Kbytes instruction SRAM, 8 Kbytes of I-cache and 8 Kbytes of D-cache; (2)3 programmable transport interfaces (PTIs): Integrated DES-ECB, DVB and ICAM descramblers, NDS RASP compliant; (3)MPEG-2 MP@ML video decoder: >2x decoding speed, Trick modes including smooth fast-forward and rewind, Fully programmable horizontal and vertical SRCs; (4)ATA-5 compliant HDD interface; (5)JTAG/TAP interface; (6)Package PBGA 35 x 35 (388); (7)Audio subsystem; (8)2 Smartcard, 5 UARTs, 2 I2C; (9)4 PWM modules; (10)Modem analog front-end interface; (11)Multichannel IR transmitter/receiver; (12)Teletext serializer and DMA module; (13)Multichannel infrared transmitter/receiver; (14)Modem analog front-end interface; (15)IEEE1284 interface; (16)Low power/RTC/watchdog controller; (17)PCM mixing and sample rate conversion ; (18)IEC958/IEC1937 digital audio output interface ; (19)Integrated stereo audio DAC system; (20)SRS/TruSurround virtual surround sound.

Diagrams

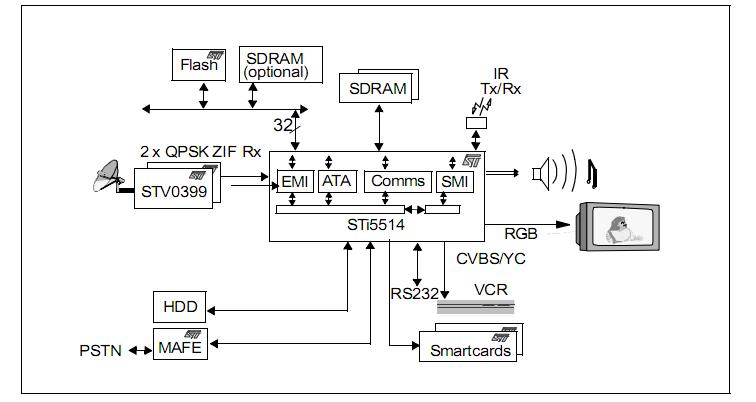

STI5514SWC block diagram
