Product Summary

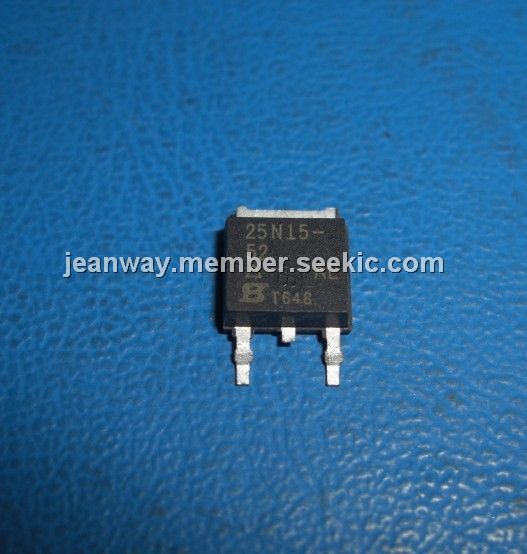

The SUD25N15 is a N-Channel 150-V (D-S) 175℃ MOSFET. The application of it is Primary Side Switch.
Parametrics
SUD25N15 absolute maximum ratings: (1)Drain-Source Voltage:150V; (2)Gate-Source Voltage:±20V; (3)Continuous Drain Current: TC = 25℃:25A, TC = 125℃:14.5A; (4)Pulsed Drain Current:50A; (5)Continuous Source Current (Diode Conduction):25A; (6)Avalanche Current:25A; (7)Repetitive Avalanche Energy (Duty Cycle≤1%):31mJ; (8)Maximum Power Dissipation: TC = 25℃:136W, TA = 25℃:3W; (9)Operating Junction and Storage Temperature Range:-55℃ to 175℃.
Features
SUD25N15 features: (1)TrenchFET Power MOSFET; (2)175℃ Junction Temperature; (3)PWM Optimized; (4)100% Rg Tested.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SUD25N15-52 |
Vishay/Siliconix |
MOSFET 150V 25A 136W |
Data Sheet |
Negotiable |
|
|||||||||||||
SUD25N15-52-E3 |
Vishay/Siliconix |
MOSFET 150V 25A 136W 52mohm @ 10V |
Data Sheet |
|
|
|||||||||||||
SUD25N15-52-T4-E3 |
MOSFET N-CH D-S 150V TO252 |
Data Sheet |
|
|
