Product Summary

The AMP02FS is the first precision instrumentation amplifier available in an 8-pin package. Gain of the AMP02FS is set by a single external resistor, and can range from 1 to 10,000. No gain set resistor is required for unity gain. The AMP02FS includes an input protection network that allows the inputs to be taken 60 V beyond either supply rail without damaging the device. The applications of the AMP02FS include Differential Amplifier, Strain Gauge Amplifier, Thermocouple Amplifier, RTD Amplifier, Programmable Gain Instrumentation Amplifier, Medical Instrumentation and Data Acquisition Systems.

Parametrics

AMP02FS absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Common-Mode Input Voltage: [(V–) – 60 V] to [(V+) + 60 V]; (3)Differential Input Voltage: [(V–) – 60 V] to [(V+) + 60 V]; (4)Output Short-Circuit Duration: Continuous; (5)Operating Temperature Range: –40 to +85℃; (6)Storage Temperature Range: –65 to +150℃; (7)Function Temperature Range: –65 to +150℃; (8)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AMP02FS features: (1)Low Offset Voltage: 100 mV max; (2)Low Drift: 2 mV/8C max; (3)Wide Gain Range 1 to 10,000; (4)High Common-Mode Rejection: 115 dB min; (5)High Bandwidth (G = 1000): 200 kHz typ; (6)Gain Equation Accuracy: 0.5% max; (7)Single Resistor Gain Set; (8)Input Overvoltage Protection; (9)Low Cost; (10)Available In Die Form.

Diagrams

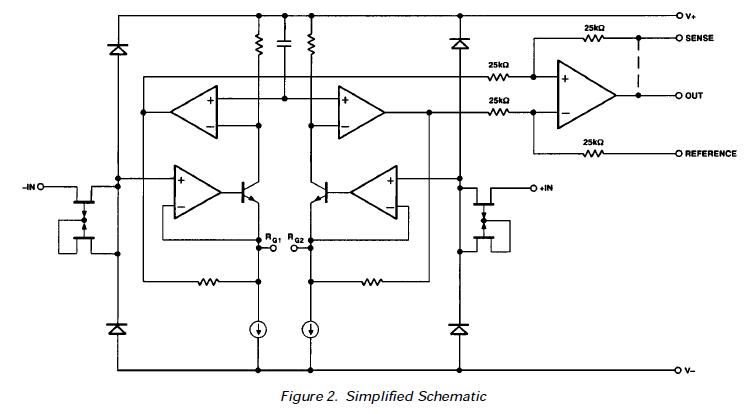

AMP02FS simplified schematic

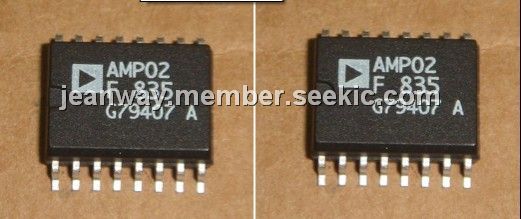

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AMP02FS
AMP02FS

IC AMP INST PREC LDRIFT 16SOIC
Data Sheet
0-47: $6.70
AMP02FS-REEL
AMP02FS-REEL

IC AMP INST PREC LDRIFT 16SOIC
Data Sheet
0-1000: $4.83
AMP02FSZ
AMP02FSZ

IC AMP INST PREC LDRIFT 16SOIC
Data Sheet
0-1: $7.04
1-10: $6.40
10-100: $5.44
100-250: $4.96
250-500: $4.64
500-1000: $4.27
AMP02FSZ-RL
AMP02FSZ-RL

IC AMP INST PREC LDRIFT 16SOIC
Data Sheet
0-1000: $4.27
