R1LP0408CSB-5SC

memory, low power SRAM, 4-Mbit static RAM

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.50

PartNumber:: R1LP0408CSB-5SC

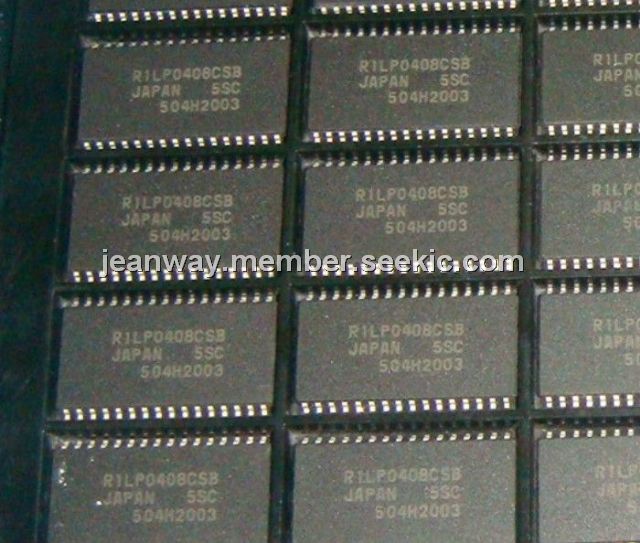

Brand:: Hitachi Semiconductor - Renesas | Pack: TSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-05

From Other Seller

Part Number:R1LP0408CSB-5SC
US $0.90 - 1.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The R1LP0408CSB-5SC is a 4-Mbit static RAM organized 512-kword × 8-bit. The R1LP0408CSB-5SC has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). The R1LP0408CSB-5SC offers low power standby power dissipation. Therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pin TSOP II.

Parametrics

Absolute maximum ratings: (1)Power supply voltage relative to VSS, VCC: -0.5 to +7.0V; (2)Terminal voltage on any pin relative to VSS, VT: -0.5x1 to VCC+0.3x2V; (3)Power dissipation, PT: 0.7W; (4)Operating temperature, Topr: -20 to +70℃; (5)Storage temperature range, Tstg: -65 to +150℃; (6)Storage temperature range under bias, Tbias: -20 to +85℃.

Features

Features: (1)Single 5 V supply: 5 V ± 10%; (2)Access time: 55/70 ns (max); (3)Power dissipation: Active, 10 mW/MHz (typ), Standby, 4 μW (typ); (4)Completely static memory: No clock or timing strobe required; (5)Equal access and cycle times; (6)Common data input and output, three state output; (7)Directly TTL compatible, all inputs and outputs; (8)Battery backup operation; (9)Operating temperature: -20 to +70℃.
