Product Summary

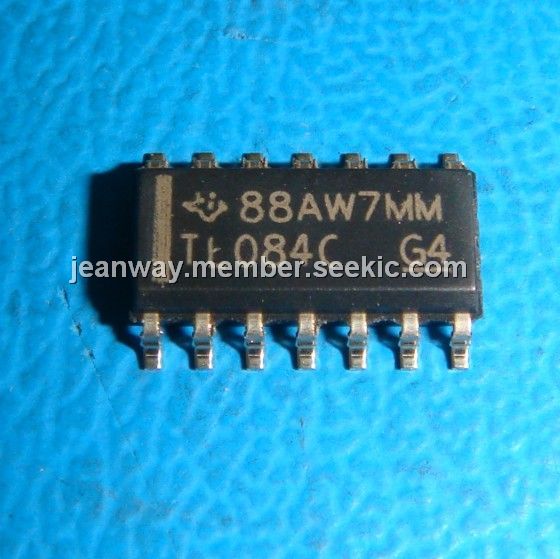

The TL084C is an input operational amplifier. It is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The TL084C features high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient. Offset adjustment and external compensation options are available within the TL084C.
Parametrics
TL084C absolute maximum ratings: (1)Supply voltage, VCC+:18V; (2)Supply voltage VCC-:-18V; (3)Differential input voltage, VID:± 30V; (4)Input voltage, VI:±15V; (5)Duration of output short circuit: Unlimited; (6)Operating free-air temperature range, TA:0℃ to 70℃; (7)Package thermal impedance, θJA:97℃/W; (8)Operating virtual junction temperature:150℃; (9)Storage temperature range, Tstg:-65℃ to 150℃.
Features
TL084C features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion:0.003% Typ; (6)High Input Impedance:JFET-Input Stage; (7)Latch-Up-Free Operation; (8)High Slew Rate:13 V/μs Typ; (9)Common-Mode Input Voltage Range Includes VCC+.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL084CDG4 |
Texas Instruments |
Operational Amplifiers - Op Amps JFET-Input Op Amp |
Data Sheet |
|
|
|||||||||||||
TL084CPWRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps JFET-Input Op Amp |
Data Sheet |
|
|
|||||||||||||
TL084CPWRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad JFET-Input |
Data Sheet |
|
|
|||||||||||||
TL084CPWR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad JFET Neg Input |
Data Sheet |
|
|
|||||||||||||
TL084CPWG4 |
Texas Instruments |
Operational Amplifiers - Op Amps JFET-Input Op Amp |
Data Sheet |
|
|
|||||||||||||
TL084CPWE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad JFET-Input |
Data Sheet |
|
|
|||||||||||||
TL084CPW |
Texas Instruments |
Operational Amplifiers - Op Amps Quad JFET-Input |
Data Sheet |
|
|
|||||||||||||
TL084CPT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Gen Purp JFET |
Data Sheet |
|
|
