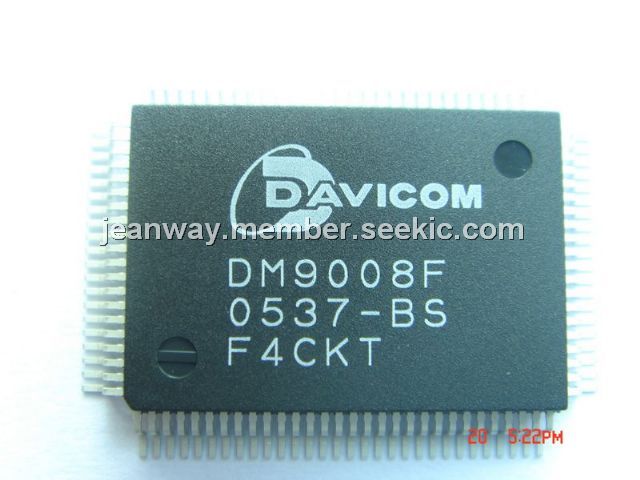

DM9008F

Product Summary

The DM9008F Ethernet controller is a highly integrated ISA/Plug & Play Super Ethernet Contoller that provides all Medial Access Control (MAC) and Encode-Decode (ENDEC) functions in accordance with the IEEE 802.3 standard. Network interfaces include 10BASE5 or 10BASE2 Ethernet via the AUI port and 10BASE-T via the Twisted-pair. The DM9008F Ethernet controller can interface directly to the PC-AT ISA bus without any external device. The interface to PC-AT ISA bus of DM9008F is fully compatible with NE2000 Ethernet adapter cards, so all software programs designed for NE2000 can run on the DM9008 card without any modification.

Parametrics

DM9008F absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Voltage (Vin): -0.5V to VCC +0.5V; (3)DC Output Voltage (Vout): -0.5V to VCC +0.5V; (4)Storage Temperature Range (Tstg): -65℃ to + 150℃; (5)Power Dissipation (PD): 500 mW; (6)Lead Temp. (TL) (Soldering, 10 sec.):220℃; (7)Ambient Temperature Range (TA): 0℃ to 70℃; (8)Case Temp. (Tc): 0℃ to 85℃; (9)ESD rating (Rzap = 1.5k, Czap = 120 pF): 4000V; (10)Differential Input Voltage: -5.5V to 16V; (11)Differential Output Voltage: 0V to 16V.

Features

DM9008F features: (1)Single chip solution for IEEE 802.3, 10BASE-T, 10BASE2 and 10BASE5; (2)Integrated ISA interface, 8Kx16 SRAM, Media Access Control, ENDEC and 10BASE-T transceiver; (3)Supports ISA Plug and Play configuration; (4)Software-compatible with NOVELL NE2000; (5)Supports PnP and Non-PnP Auto-switching; (6)PnP, Non-PnP and Auto-switch mode software selectable; (7)8 interrupt lines selectable; (8)Auto-Polarity detection and correction; (9)Selectable 8 and 16-bit slot mode; (10)Provides auto-detection/auto-switching for 10BASE-T Transceiver and Attachment Unit Interface (AUI); (11)External EEPROM programmable; (12)Supports BOOT-ROM page mode; (13)Loopback capability for diagnostics; (14)Receiver and collision squelch circuit to reduce noise; (15)Low-power CMOS process with single 5V power supply; (16)Built-in pre-distortion resisters for 10BASE-T application; (17)100-pin QFP package.

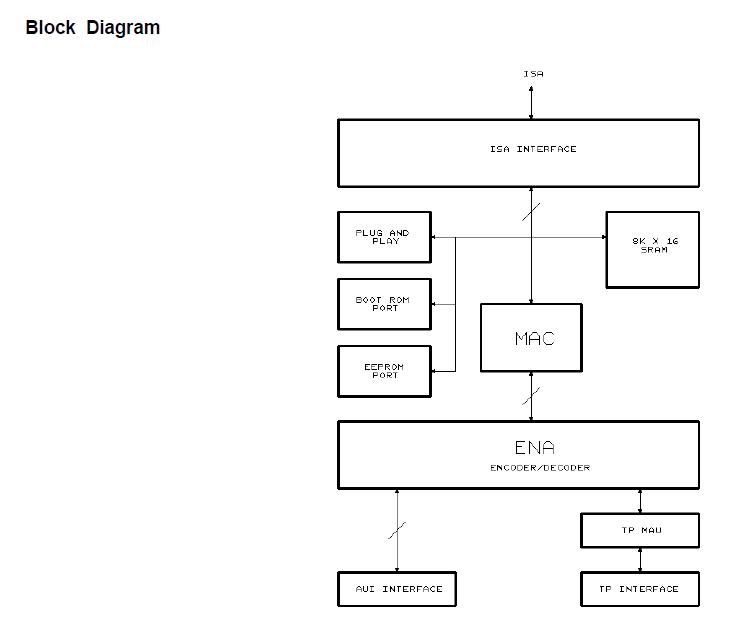

Diagrams
