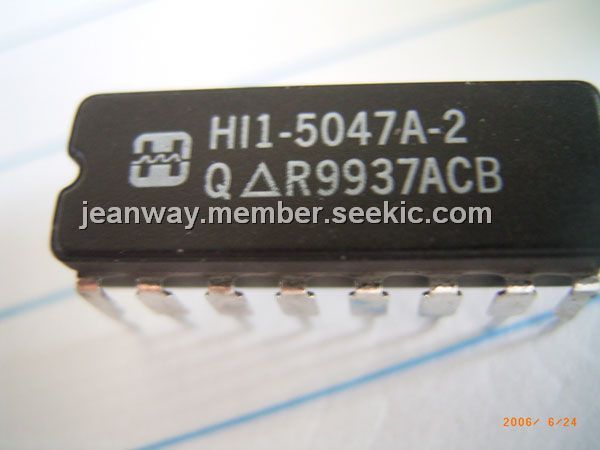

HI1-5047A-2

CMOS Analog Switch, CDIP, 36V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~6.00

PartNumber:: HI1-5047A-2

Brand:: Harris Corporation - Harris | Pack: CDIP | D/C: 99+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:HI1-5047A-2
US $4.00 - 6.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

This HI1-5047A-2 CMOS analog switch offers low resistance switching performance for analog voltages up to the supply rails and for signal currents up to 80mA. “ON” resistance of the HI1-5047A-2 is low and stays reasonably constant over the full range of operating signal voltage and current. RON remains exceptionally constant for input voltages between +5V and -5V and currents up to 50mA. Switch impedance also changes very little over temperature, particularly between 0℃ and +75℃. RON is nominally 25W for the HI1-5047A-2. The HI1-5047A-2 provides break-before-make switching and is TTL and CMOS compatible for maximum application versatility. Performance of the HI1-5047A-2 is further enhanced by Dielectric Isolation processing which insures latch-free operation with very low input and output leakage currents (0.8nA at +25℃). This family of switches also features very low power operation (1.5mW at +25℃).

Parametrics

HI1-5047A-2 absolute maximum ratings: (1)Supply Voltage (V+, V-): 36V; (2)VR to Ground: V+, VDigital; (3)and Analog Input Voltage: +VSUPPLY +4V, -VSUPPLY -4V; (4)Analog Current (S to D) Continuous: 30mA; (5)Analog Current (S to D) Peak: 80mA; (6)Storage Temperature: -65℃ to +150℃; (7)Lead Temperature (Soldering 10s): +300℃.

Features

HI1-5047A-2 features: (1)±5V Wide Analog Signal Range; (2)Low "N" Resistance 25W (Typical); (3)High Current Capability 80mA (Typical); (4)Break-Before-Make Switching, Turn-On Time 370ns (Typical), Turn-Off Time 280ns (Typical); (5)No Latch-Up; (6)Input MOS Gates are Protected from Electrostatic Discharge; (7)DTL, TTL, CMOS, PMOS Compatible.
