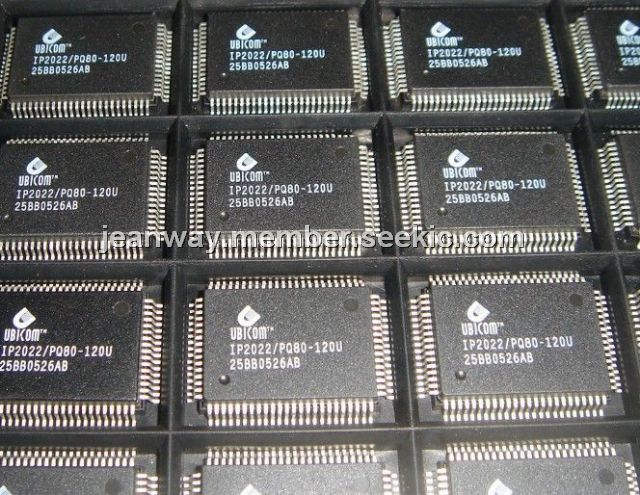

IP2022/PQ80-120U

QFP, Wireless Network Processor, 4kB SRAM

Rated 5 Rating 5 | reviews | Write a review

Price:: US $14.00~16.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $14.00~16.00

PartNumber:: IP2022/PQ80-120U

Brand:: Ubicom - Ubicom | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:IP2022/PQ80-120U
US $14.00 - 16.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IP2022/PQ80-120U is a kind of Wireless Network Processor which combines support for communication physical layer, Internet protocol stack, device-specific application, and device-specific peripheral software modules in a single chip, and are reconfigurable over the Internet. The IP2022/PQ80-120U can be programmed, and reprogrammed, using pre-built software modules and configuration tools to create true single-chip solutions for a wide range of device-to-device and device-to-human communication applications.

Parametrics

IP2022/PQ80-120U maximum ratings: (1)Ambient temperature under bias: -40 to 85 ℃; (2)Storage temperature: -65 to 150 ℃; (3)PQFP Soldering temperature ramp to 160-180℃: 2.5 ℃/sec; (4)Voltage on DVdd, XVdd, AVdd, and GVdd with respect to Vss: -0.5 to 3.5 V; (5)Voltage on IOVdd with respect to Vss: -0.5 to 4.5 V; (6)Maximum current out of all DVss pins: 400 mA; (7)Maximum allowable sink current per I/O pin: 160 mA; (8)ESD Human Body Model - all pins: 2000 V; (9)ESD Machine Model - all pins: 200 V.

Features

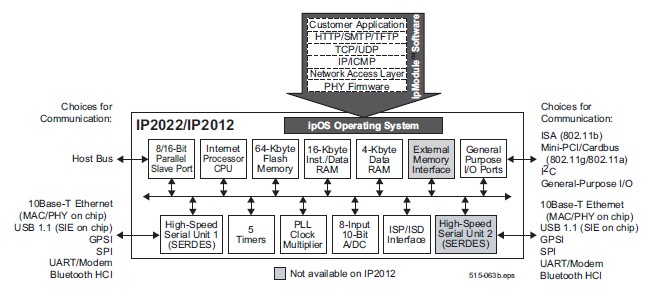

IP2022/PQ80-120U features: (1)Designed to support single-chip networked solutions; (2)Fast processor core; (3)64kB Flash program memory; (4)16kB SRAM data/program memory; (5)4kB SRAM data memory; (6)Two SerDes communication blocks supporting common PHYs (Ethernet, USB, UARTs, etc.) and bridging applications (IP2012 has only one SerDes unit); (7)Advanced RISC processors: 120 and 160 MHz versions; (8)High speed packet processing; (9)Instruction set optimized for communication functions; (10)Supports software implementation of traditional hardware functions; (11)In-system reprogrammable for highest flexibility.
