Product Summary
The KM681000CLP-7 is fabricated by SAMSUNG advanced CMOS process technology. It supports various operating temperature ranges and have various package types for user flexibility of system design. It also supports low data retention voltage for battery backup operation with low data retention current.
Parametrics
KM681000CLP-7 absolute maximum ratings: (1)Voltage on any pin relative to Vss, VIN, VOUT: -0.5 to 7.0 V; (2)Voltage on Vcc supply relative to Vss, VCC: -0.5 to 7.0 V; (3)Power Dissipation, PD: 1.0 W; (4)Storage temperature, TSTG: -65 to 150 ℃; (5)Operating Temperature, TA: 0 to 70℃; (6)Soldering temperature and time, TSOLDER: 260℃, 10sec (Lead Only).
Features
KM681000CLP-7 features: (1)Process Technology: TFT; (2)Organization: 128K x8; (3)Power Supply Voltage: 4.5~5.5V ; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP1-0820F/R.

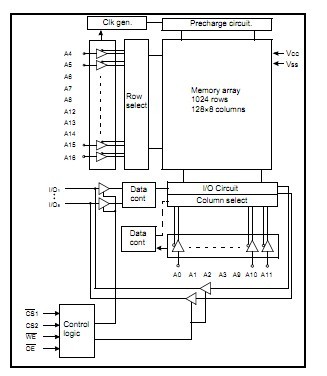

Diagrams
 |
