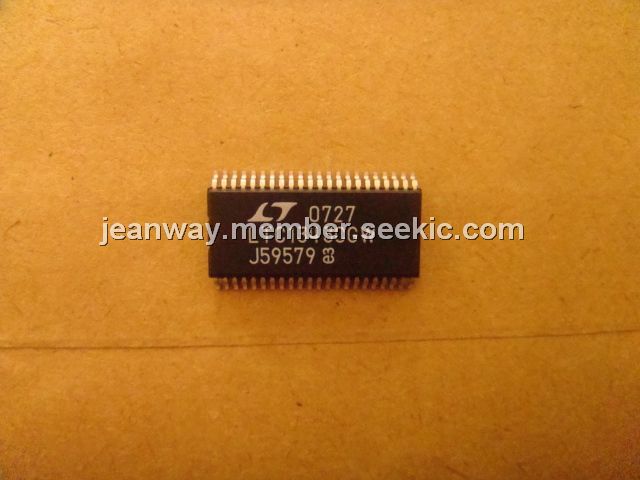

Product Summary
The LTC1343CGW is a 4-driver/4-receiver multiprotocol transceiver that operates from a single 5V supply. Two LTC1343CGWs form the core of a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA-530, EIA-530-A, V.35, V.36 or X.21 protocols. The LTC1343CGW runs from a single 5V supply using an internal charge pump that requires only five space saving surface mount capacitors. The mode pins are latched internally to allow sharing of the select lines between multiple interface ports.
Parametrics
LTC1343CGW absolute maximum ratings: (1)Supply Voltage: 6.5V; (2)Input Voltage, Transmitters: –0.3V to (VCC + 0.3V); Receivers: –18V to 18V; Logic Pins: –0.3V to (VCC + 0.3V); (3)Output Voltage, Transmitters: (VEE – 0.3V) to (VDD + 0.3V); Receivers: –0.3V to (VCC + 0.3V); Logic Pins: –0.3V to (VCC + 0.3V); VEE: –10V to 0.3V; VDD: –0.3V to 10V; (4)Short-Circuit Duration, Transmitter Output: Indefinite; Receiver Output: Indefinite; VEE: 30 sec; (5)Operating Temperature Range: 0 to 70℃; (6)Storage Temperature Range: – 65 to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1343CGW features: (1)Software-Selectable Transceiver Supports: RS232, RS449, EIA-530, EIA-530-A, V.35, V.36, X.21; (2)NET1 and NET2 Compliant; (3)Software-Selectable Cable Termination Using the LTC1344; (4)4-Driver/4-Receiver Configuration Provides a Complete 2-Chip DTE or DCE Port; (5)Operates from Single 5V Supply; (6)Internal Echoed Clock and Loop-Back Logic.

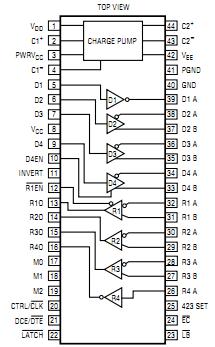

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

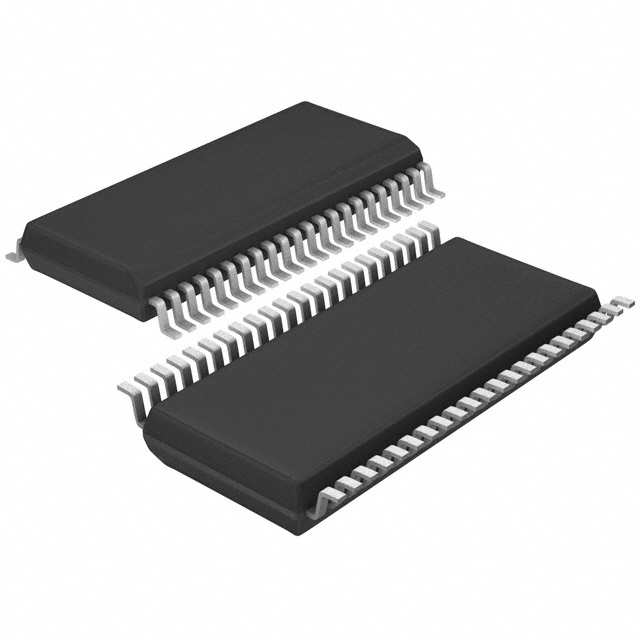

 LTC1343CGW |
|
IC TXRX SOFTWARE-SELECTBL 44SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1343CGW#PBF |
|
IC TXRX SOFTWARE-SELECTBL 44SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1343CGW#TR |
|
IC TXRX SOFTWARE SELECT 44SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1343CGW#TRPBF |
|
IC TXRX SOFTWARE-SELECTBL 44SSOP |
Data Sheet |
|
|
||||||||||
