Product Summary

The MIC29150-3.3WU is a high current, high accuracy, low-dropout voltage regulator. Using Micrel proprietary Super beta PNP process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high current loads, MIC29150-3.3WU also finds applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes.

Parametrics

MIC29150-3.3WU absolute maximum ratings: (1)Input Supply Voltage (VIN): –20V to +60V ; (2)Enable Input Voltage (VEN): –0.3V to VIN; (3)Lead Temperature (soldering, 5sec.): 260℃ ; (4)Power Dissipation: Internally Limited ; (5)Storage Temperature Range: -65℃ to +150℃.

Features

MIC29150-3.3WU features: (1)High current capability: 1.5A ; (2)Low-dropout voltage ; (3)Low ground current ; (4)Accurate 1% guaranteed tolerance ; (5)Extremely fast transient response ; (6)Reverse-battery and Load Dump protection ; (7)Zero-current shutdown mode (5-pin versions) ; (8)Error flag signals output out-of-regulation (5-pin versions) ; (9)Also characterized for smaller loads with industry leading performance specifications ; (10)Fixed voltage and adjustable versions.

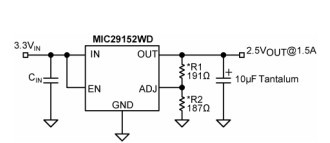

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

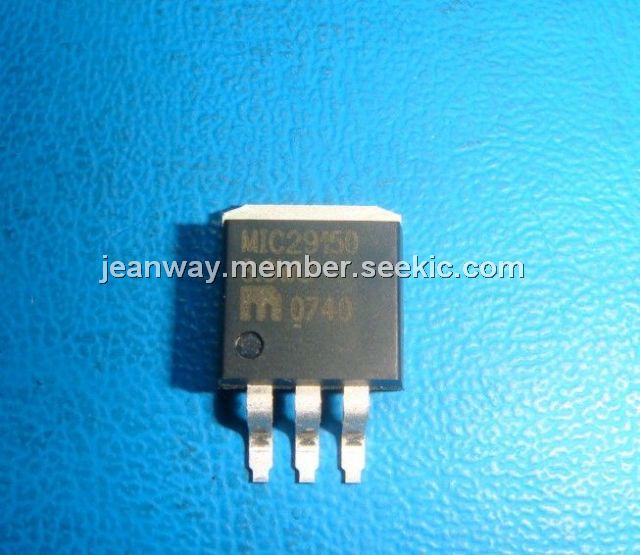

MIC29150-3.3WU
MIC29150-3.3WU


IC REG LDO 3.3V 1.5A TO263

Data Sheet

0-1: $1.79
1-25: $1.44
25-100: $1.12
100-250: $1.06
250-500: $1.04
MIC29150-3.3WU TR
MIC29150-3.3WU TR


IC REG LDO 3.3V 1.5A TO-263

Data Sheet

0-750: $1.04
