Product Summary

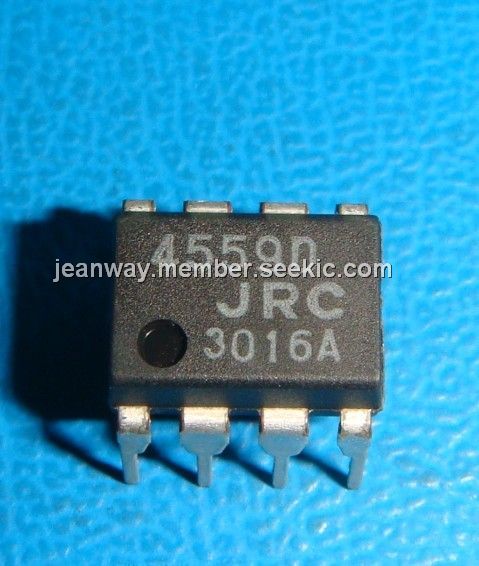

The NJM4559D is a dual high-gain operational amplifier. It is internally compensated and constructed on a single silicon chip using an advanced epitaxial process.The NJM4559D is especially weel suited for applications in differential-in, differential-out as well as in potentiometric amplifiers and where gain and phase matchaed channels are mandatory. Combining the features of the NJM741 with the close parameter matching and tracking of a dual device on a monolithic chip results in unique performance characteristics.

Parametrics

NJM4559D absolute maximum ratings: (1)supply voltage:±18V; (2)differential input voltage:±30V; (3)input voltage:±15V; (4)power dissipation:500mW; (5)operating temperature range:-20℃ to +75℃; (6)storage temperature range:-40℃ to +125℃.

Features

NJM4559D electrical characteristics: (1)input offset voltage:0.5mV to 6mV; (2)input offset current:5nA to 200nA; (3)input bias current:50nA to 500nA; (4)input resistance:0.3mΩ to 5mΩ; (5)large signal voltage gain:86dB to 100dB; (6)maximum output voltage swing1:±12V to ±14V; (7)maximum output voltage swing2:±10V to ±13V; (8)input common mode votage range:±12V to ±14V; (9)common mode rejection ratio:70dB to 90dB; (10)supply voltage rejection ratio:76.5dB to 90dB; (11)supply current:3.5mA to 5.7mA; (12)equivalent input noise voltage:1.4μVrms.

Diagrams

NJM4559D equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NJM4559DD
NJM4559DD
NJR
Operational Amplifiers - Op Amps Dual High Gain
Data Sheet
0-1: $0.43
1-25: $0.36
25-100: $0.29
100-500: $0.26
NJM4559D#
NJM4559D#
NJR
IC OPAMP DUAL HIGH-GAIN 8-DIP
Data Sheet
1-2000: $0.17
NJM4559D
NJM4559D
NJR
Operational Amplifiers - Op Amps Dual High Gain
Data Sheet
0-1: $0.40
1-25: $0.33
25-100: $0.27
100-500: $0.24
