Product Summary

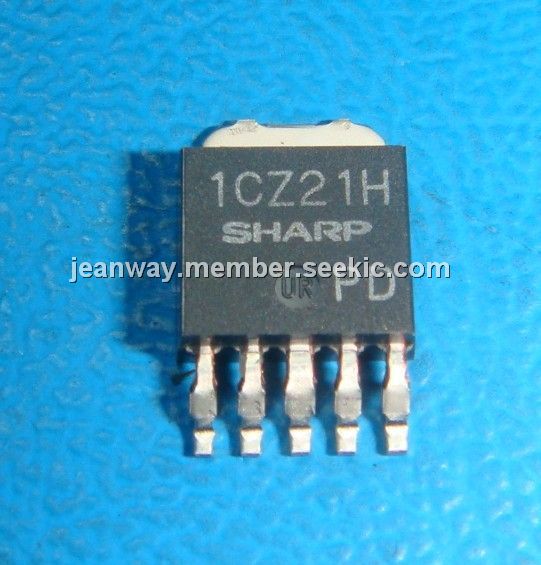

The PQ1CZ21H2ZP is a Low Dissipation Current at OFF-state Chopper Regulator. The applications of it are Facsimiles, Printers, Switching power supplies.
Parametrics
PQ1CZ21H2ZP absolute maximum ratings: (1)Input voltage:40V; (2)Switching current:1.5A; (3)Junction temperature:150℃; (4)Dropout voltage:41V; (5)Output-COM voltage:-1V; (6)Output adjustment terminal voltage:7V; (7)ON/OFF control voltage:-0.3V to +40V; (8)Operating temperature:-40℃ to +85℃; (9)Storage temperature:-40℃ to +150℃; (10)Soldering temperature:260℃; (11)Power dissipation:150℃.
Features
PQ1CZ21H2ZP features: (1)Maximum switching current:1.5A; (2)Low dissipation current at OFF-state (Iqs=Max. 1μA); (3)Built-in oscillation circuit(Oscillation frequency:TYP.100kHz) ; (4)Built-in overheat/overcurrent protection function; (5)Variable output voltage(Output variable range:Vref to 35V/-Vref to -30V).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PQ1CZ21H2ZPH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 1.5A 100KHz |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
PQ1CG21H2RZH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 1.5A 100kH |
Data Sheet |
|
|
||||||||||||
|
PQ1CG3032RZH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 3.5A 150kH |
Data Sheet |
|
|
||||||||||||
|
PQ1CY1032ZZH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 3.5A 150kH |
Data Sheet |
Negotiable |
|
||||||||||||
|
PQ1CZ21H2ZZH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 1.5A 100KHz |
Data Sheet |
Negotiable |
|
||||||||||||
|
PQ1CZ38M2ZPH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 0.8A 300KHz |
Data Sheet |
Negotiable |
|
||||||||||||
|
PQ1CG41H2FZH |
Sharp Microelectronics |
Switching Converters, Regulators & Controllers 40V 1.5A 300kH |
Data Sheet |
Negotiable |
|
||||||||||||
