Product Summary

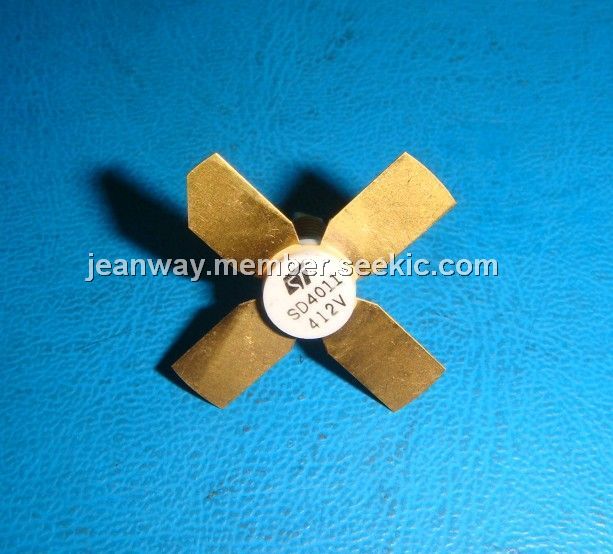

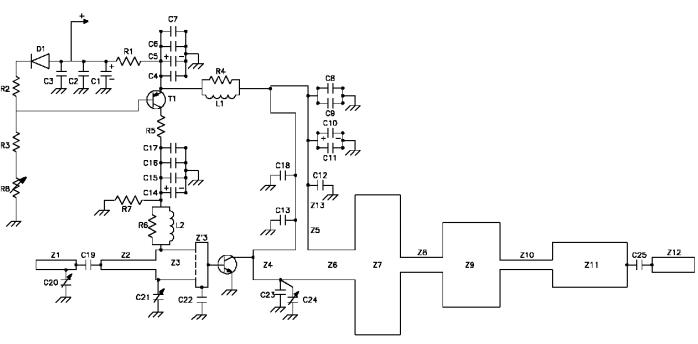

The SD4011 is a gold metallized NPN silicon bipolar device optimized for Class A operation in TV Band IV/V. Suitable for a variety of other UHF linear applications, SD4011 is supplied in an industry-standard .280 stud package.
Parametrics
SD4011 absolute maximum ratings: (1)Collector-Base Voltage:65V; (2)Collector-Emitter Voltage:65V; (3)Emitter-Base Voltage:3.5V; (4)Device Current:1.59A; (5)Power Dissipation:31.8W; (6)Junction Temperature:+200℃; (7)Storage Temperature:-65℃ to +150℃.
Features
SD4011 features: (1)gold metallization; (2)internal input matching; (3)common emitter; (4)overlay geometry; (5)class a operation; (6)metal/ceramic package; (7)POUT = 4w min. with 8db gain.
