Product Summary

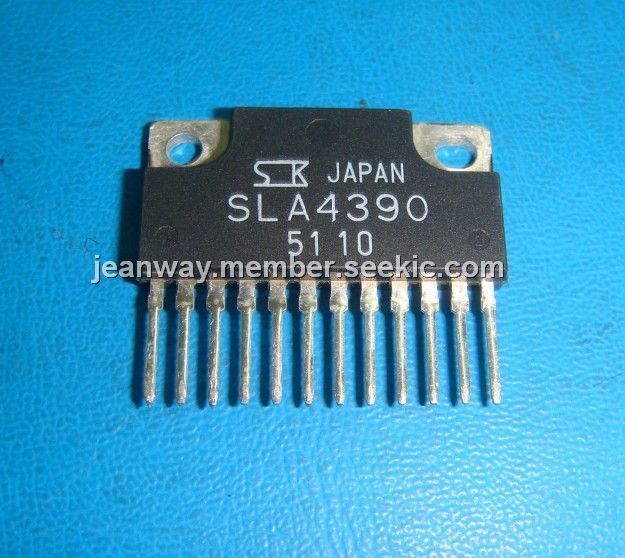

The SLA4390 is a PNP and NPN Darlington H-bridge.
Parametrics
SLA4390 absolute maximum ratings: (1)VCBO:±100V; (2)VCEO:±100V; (3)VEBO:±6V; (4)IC:±5A; (5)ICP:±8A; (6)IB:±0.5A; (7)PT:5W(Ta=25℃), 25W(Tc=25℃); (8)VISO:1000V (Between fin and lead pin, AC) ; (9)Tj:150℃; (10)Tstg:–40℃ to +150℃; (11)θj-c :5℃/W.
Features
SLA4390 features: (1)ICBO:±10uA; (2)IEBO:±10mA; (3)VCEO:±100V; (4)hFE:±2000; (5)VCE(sat):±1.5V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SLA4390 |
Other |
|
Data Sheet |
Negotiable |
|
||||
