Product Summary

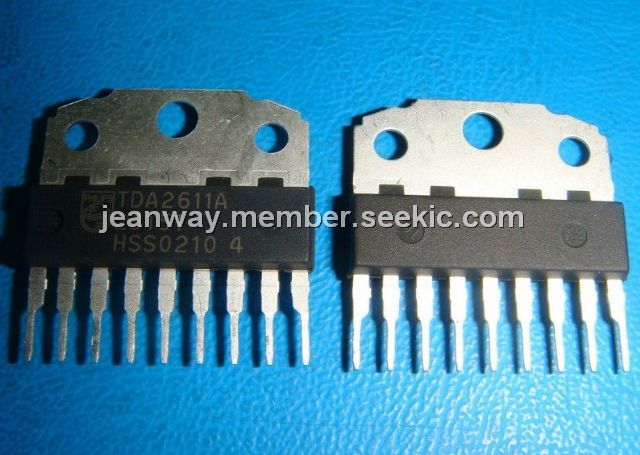

The TDA2611A is a monolithic integrated circuit in a 9-lead single in-line (SIL) plastic package with a high supply voltage audio amplifier.
Parametrics
TDA2611A absolute maximum ratings: (1)Supply voltage VP max.:35 V; (2)Non-repetitive peak output current IOSM max.:3 A; (3)Repetitive peak output current IORM max.:1.5 A; (4)Storage temperature Tstg:-55℃ to + 150℃; (5)Operating ambient temperature Tamb:-25℃ to + 150℃.
Features
TDA2611A features: (1)possibility for increasing the input impedance; (2)single in-line (SIL) construction for easy mounting; (3)very suitable for application in mains-fed apparatus; (4)extremely low number of external components; (5)thermal protection; (6)well defined open loop gain circuitry with simple quiescent current setting and fixed integrated closed loop gain.

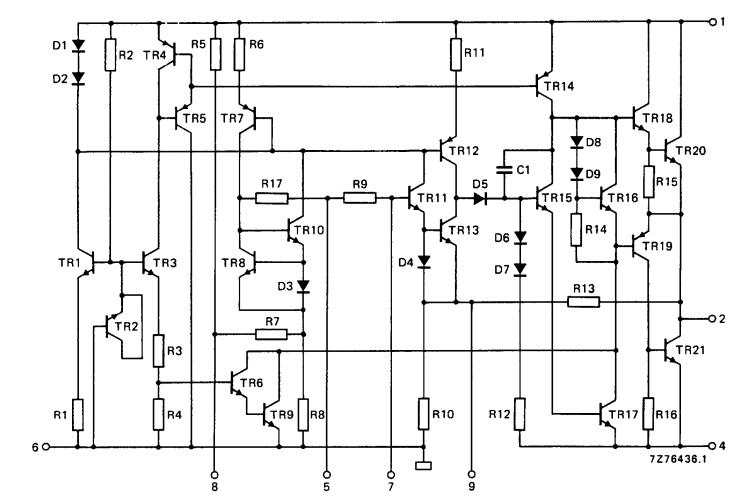

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA2611A |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
TDA2611A/N5,112 |
NXP Semiconductors |
Audio Amplifiers 2-6W AUDIO AMPLIFIER |
Data Sheet |
Negotiable |
|
||||
