Product Summary

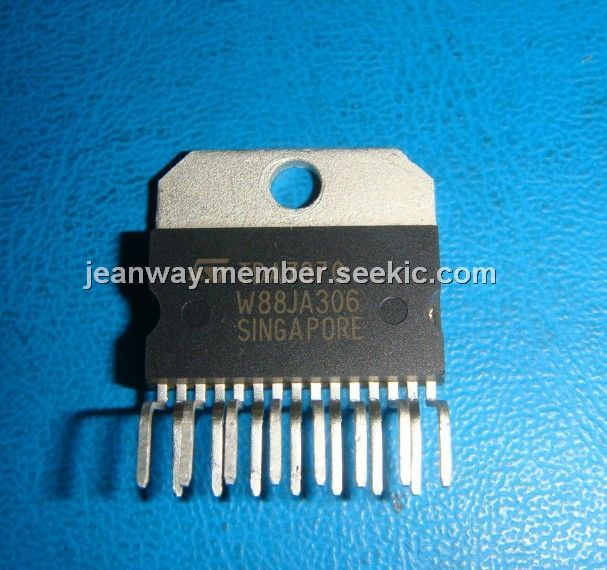

The TDA7370 is a new technology class AB quad channels Audio Power Amplifier in Multiwatt package designed for car radio applications. Thanks to the fully complementary PNP/NPN output configuration the high power performances of the TDA7370 are obtained without bootstrap capacitors.
Parametrics
TDA7370 absolute maximum ratings: (1)DC Supply Voltage:28V; (2)Operating Supply Voltage:18V; (3)Peak Supply Voltage (t = 50ms):50V; (4)Output Peak Current (not rep. t = 100μs):4.5A; (5)Output Peak Current (rep. f > 10Hz):3.5A; (6)Power Dissipation (Tcase =85℃):36W; (7)Storage and Junction Temperature:-40℃ to 150℃.
Features
TDA7370 features: (1)minimum external component count; (2)high current capability; (3)no bootstrap capacitors; (4)no boucherot cells; (5)clip detector output; (6)high output power; (7)high applicationflexibility; (8)fixed gain; (9)very lowstand-by current (1μA typ); (10)no switch on/off noise.

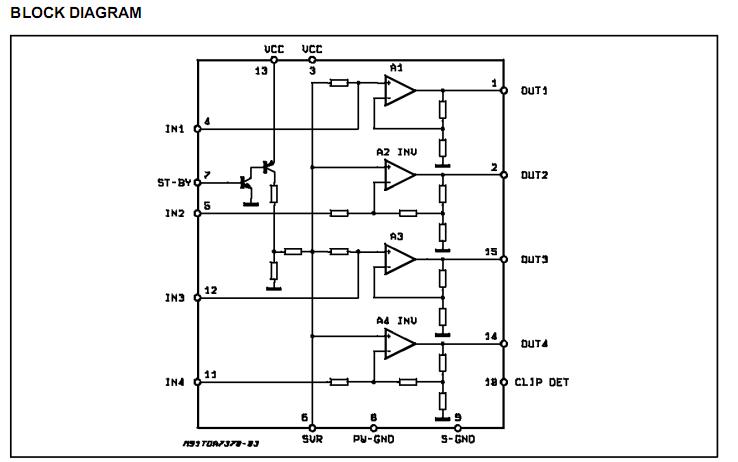

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TDA7370 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() TDA7370B |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() TDA7370BV |
![]() STMicroelectronics |
![]() Audio Amplifiers 18V Op 28V DC 36W 50V Supply 4.5A Out |
![]() Data Sheet |
![]() Negotiable |
|
