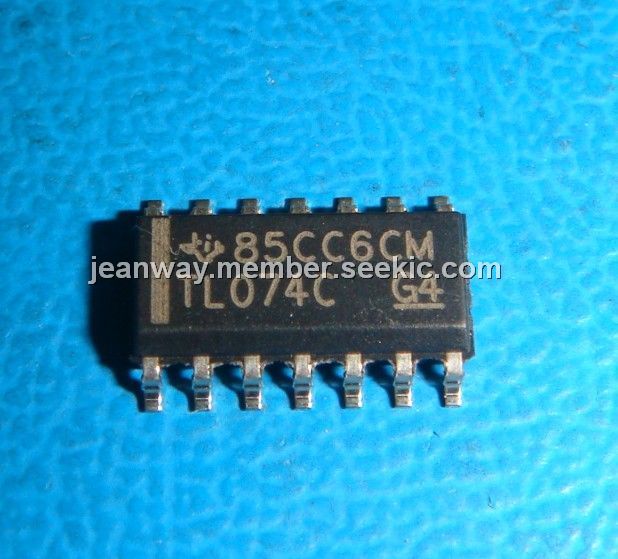

TL074C

Low Power Consumption, Low Total Harmonic Distortion, 0.003% Typ, SOP, JFET-input operational amplifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.13~0.20

PartNumber:: TL074C

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-15

From Other Seller

Part Number:TL074C
US $0.13 - 0.20
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TL074C is a JFET-input operational amplifier. It is designed as low-noise versions of the TL08_ series amplifiers with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL074C ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

Parametrics

TL074C absolute maximum ratings: (1)Supply voltage, VCC+:18 V; (2)Supply voltage, VCC–:–18 V; (3)Differential input voltage, VID:±30 V; (4)Input voltage, VI:±15 V; (5)Duration of output short circuit:unlimited; (6)Operating free-air temperature range, TA: 0℃ to 70℃; (7)Storage temperature range:–65℃ to 150℃; (8)Case temperature for 60 seconds: FK package:260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃.

Features

TL074C features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential; (3)Voltage Ranges; (4)Low Input Bias and Offset Currents; (5)Output Short-Circuit Protection; (6)Low Total Harmonic Distortion 0.003% Typ; (7)Low Noise: Vn = 18 nV/√Hz Typ at f = 1 kHz; (8)High Input Impedance:JFET Input Stage; (9)Internal Frequency Compensation; (10)Latch-Up-Free Operation; (11)High Slew Rate:13 V/μs Typ; (12)Common-Mode Input Voltage Range Includes VCC+.
