Product Summary

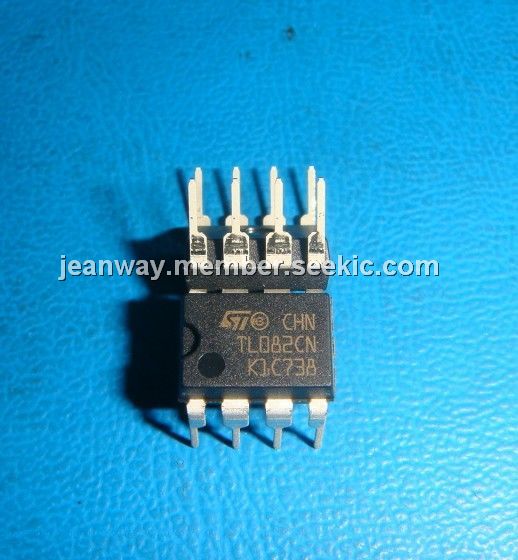

The TL082CN is a high speed JFET input dual operational amplifier incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The TL082CN features high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Parametrics
TL082CN absolute maximum ratings: (1)Supply voltage:±18 V; (2)Input voltage:±15 V; (3)Differential input voltage:±30 V; (4)Power dissipation:680 mW; (5)Thermal resistance junction to ambient:85℃/W; (6)Thermal resistance junction to case:41℃/W; (7)Output short-circuit duration:Infinite; (8)Storage temperature range:-65℃ to +150℃; (9)HBM: human body model:1kV; (10)MM: machine model:200 V; (11)CDM: charged device model:1500 V.
Features
TL082CN features: (1)Wide common-mode (up to VCC+) and differential voltage range; (2)Low input bias and offset current; (3)Output short-circuit protection; (4)High input impedance JFET input stage; (5)Internal frequency compensation; (6)Latch up free operation; (7)High slew rate: 16 V/μs (typical).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL082CN |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Gen Purp JFET |
Data Sheet |
|
|
|||||||||||||
