Product Summary

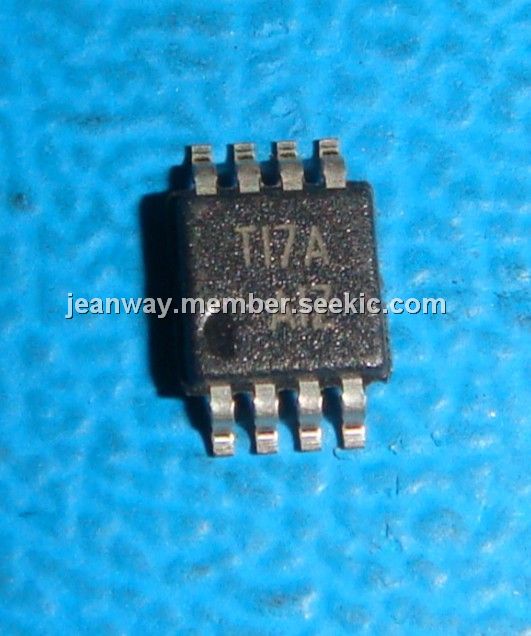

The TPA6110A2DGN is a stereo audio power amplifier packaged in an 8-pin PowerPAD MSOP package capable of delivering 150 mW of continuous RMS power per channel into 16-Ω loads. The TPA6110A2DGN gain is externally configured by means of two resistors per input channel and does not require external compensation for settings of 1 to 10. THD+N when driving a 16-Ω load from 5 V is 0.03% at 1 kHz, and less than 1% across the audio band of 20Hz to 20 kHz. For 32-Ω loads, the THD+N is reduced to less than 0.02% at 1 kHz, and is less than 1% across the audio band of 20Hz to 20 kHz. For 10-kΩ loads, the THD+N performance is 0.005% at 1 kHz, and less than 0.5% across the audio band of 20 Hz to 20 kHz.

Parametrics

TPA6110A2DGN absolute maximum ratings: (1)Supply voltage:6 V; (2)Input voltage:-0.3V to VDD+0.3V; (3)Continuous total power dissipation:Internally limited; (4)Operating junction temperature range:-40℃ to 150℃; (5)Storage temperature range:-65℃ to 150℃; (6)Lead temperature 1,6mm (1/16inch) from case for 10 seconds:260℃.

Features

TPA6110A2DGN features: (1)150 mW Stereo Output; (2)PC Power Supply Compatible:Fully Specified for 3.3 V and 5 V Operation, Operation to 2.5 V; (3)Pop Reduction Circuitry; (4)Internal Mid-Rail Generation; (5)Thermal and Short-Circuit Protection; (6)Surface-Mount Packaging:PowerPAD MSOP; (7)Pin Compatible With LM4881.

Diagrams

TPA6110A2DGN pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPA6110A2DGN
TPA6110A2DGN

Texas Instruments

Audio Amplifiers Stereo Headphone Pin Compat w/LM4881

Data Sheet

0-1: $0.66
1-25: $0.53
25-100: $0.46
100-250: $0.43
TPA6110A2DGNG4
TPA6110A2DGNG4

Texas Instruments

Audio Amplifiers Stereo Headphone Pin Compat w/LM4881

Data Sheet

0-1: $0.57
1-25: $0.54
25-100: $0.38
100-250: $0.33
TPA6110A2DGNR
TPA6110A2DGNR

Texas Instruments

Audio Amplifiers Stereo Headphone Pin Compat w/LM4881

Data Sheet

0-1: $0.44
1-25: $0.35
25-100: $0.27
100-250: $0.25
TPA6110A2DGNRG4
TPA6110A2DGNRG4

Texas Instruments

Audio Amplifiers Stereo Headphone Pin Compat w/LM4881

Data Sheet

0-1950: $0.23
1950-2000: $0.23
2000-2500: $0.23
2500-5000: $0.22
