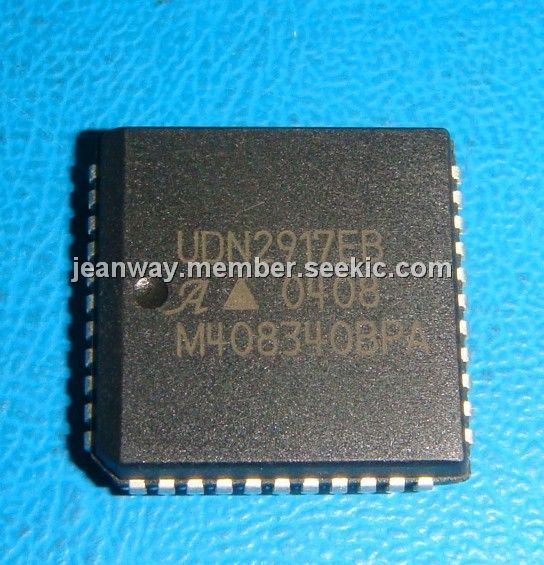

Product Summary
The UDN2917EB motor driver is designed to drive both windings of a bipolar stepper motor or bidirectionally control two dc motors. Both bridges are capable of sustaining 45 V and include internal pulse-width modulation (PWM) control of the output current to 1.5 A. For PWM current control, the maximum output current of UDN2917EB is determined by the user’s selection of a reference voltage and sensing resistor. Two logic-level inputs select output current limits of 0, 33%, 67%, or 100% of the maximum level.
Parametrics
UDN2917EB absolute maximum ratings: (1)Motor Supply Voltage, VBB: 45 V; (2)Output Current, IOUT (tw ≤ 20 μs): ±1.75 A, (Continuous): ±1.5 A; (3)Logic Supply Voltage, VCC: 7.0 V; (4)Logic Input Voltage Range, VIN: -0.3 V to +7.0 V; (5)Output Emitter Voltage, VE: 1.0 V; (6)Operating Temperature Range, TA: -20℃ to +85℃; (7)Storage Temperature Range, TS: -55℃ to +150℃.
Features
UDN2917EB features: (1)1.5 A Continuous Output Current; (2)45 V Output Sustaining Voltage; (3)Internal Clamp Diodes; (4)Digital Control of Output Current; (5)Internal Thermal Shutdown Circuitry; (6)Similar to Dual PBL3770.

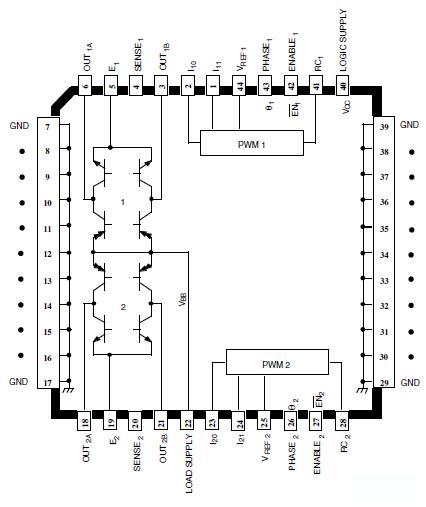

Diagrams
