W83697UF

LPC I/O, QFP, -0.5 to 7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: W83697UF

Brand:: Winbond - Winbond | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-14

From Other Seller

Part Number:W83697UF
US $2.00 - 3.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

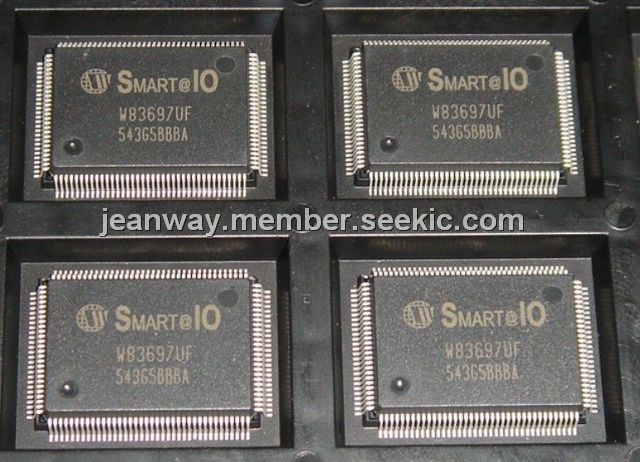

The W83697UF is a LPC I/O. The device features a whole new interface, namely LPC (Low Pin Count) interface, which will be supported in the new generation chip-set. This interface W83697UF as its name suggests is to provide an economical implementation of I/O interface with lower pin count and still maintains equivalent performance as its ISA interface counterpart. Approximately 40 pin counts are saved in LPC I/O comparing to ISA implementation. The W83697UF is fully transparent in terms of software which means no BIOS or device driver update is needed except chip-specific configuration. The W83697UF provides four high-speed serial communication ports (UARTs), one of which supports serial Infrared communication. Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system.

Parametrics

W83697UF absolute maximum ratings: (1)Power Supply Voltage (5V): -0.5 to 7.0 V; (2)Input Voltage: -0.5 to VDD+0.5 V; (3)RTC Battery Voltage, VBAT: 2.2 to 4.0 V; (4)Operating Temperature: 0 to +70℃; (5)Storage Temperature: -55 to +150℃.

Features

W83697UF features: (1)Support LDRQ#(LPC DMA), SERIRQ (serial IRQ); (2)Include all the features of Winbond I/O W83877TF; (3)Integrate Smart Card functions; (4)Compliant with Microsoft PC98/PC99 Hardware Design Guide; (5)Support DPM (Device Power Management), ACPI; (6)Programmable configuration settings; (7)Single 24 or 48 MHz clock input; (8)Compatible with IBM PC AT disk drive systems; (9)Variable write pre-compensation with track selectable capability; (10)Support vertical recording format; (11)DMA enable logic; (12)16-byte data FIFOs; (13)Support floppy disk drives and tape drives; (14)Support IrDA version 1.0 SIR protocol with maximum baud rate up to 115.2K bps; (15)Support SHARP ASK-IR protocol with maximum baud rate up to 57,600 bps.
