SSOP, low-cost programmable-gain power amplifier, 64 dBmV, 810 pV / Hz, 1-dB steps

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~1.00

PartNumber:: mt1530

Brand:: Microtune,Inc - Microtune | Pack: SSOP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jessi's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-14

From Other Seller

Part Number:mt1530
US $0.30 - 1.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

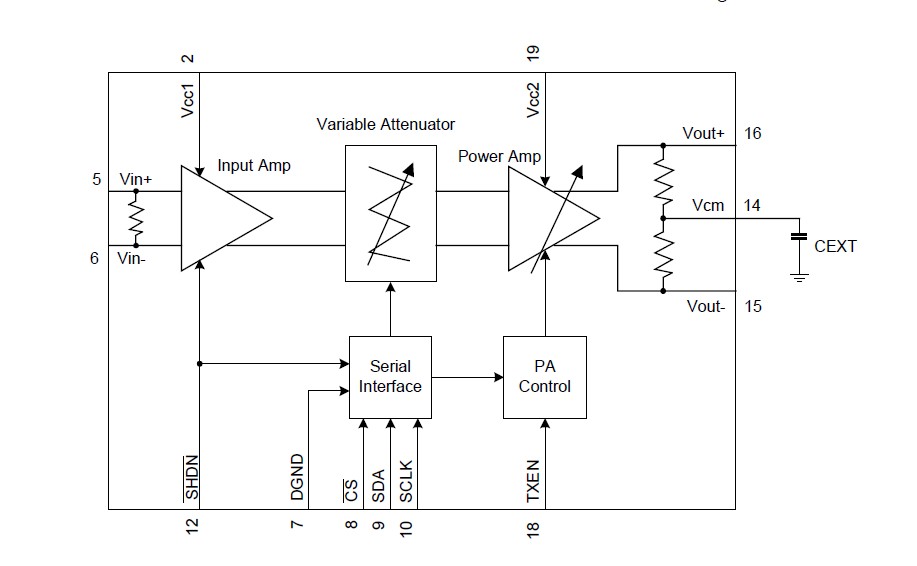

The Microtune MT1530 is a low-cost programmable-gain power amplifier IC for use in CATV upstream applications. Specifically, the MT1530 is optimized for the DOCSIS upstream standard. The device operates at a frequency range from 5 MHz to 65 MHz, and can output 64 dBmV through a 4:1 impedance-ratio transformer. Second harmonic distortion is typically less than -70 dBc, and third harmonic distortion is typically less than -55 dBc at a 59 dBmV output level. A 3-wire digital serial bus controls the variable gain, with gain control available in 1-dB steps and a nominal 63-dB gain range. The MT1530 may be disabled via an external control pin. The transmit-disable mode not only minimizes output noise by shutting off the output stage, but also maintains its output impedance at nominal levels. Output glitch transients are nominally less than 4 mV at maximum gain settings during transmit enable/disable switching.

Parametrics

mt1530 absolute maximum ratings: (1)VCC (VCC1, VCC2): -0.7 6 V; (2)VOUT+, VOUT-: -0.7 7.5 V; (3)Input voltage levels (all inputs), VCM: -0.7 VCC + 0.7 V; (4)Junction temperature: +150 ℃; (5)Storage temperature range: -55 +150 ℃; (6)Lead temperature (soldering, 10 seconds): +300 ℃.
